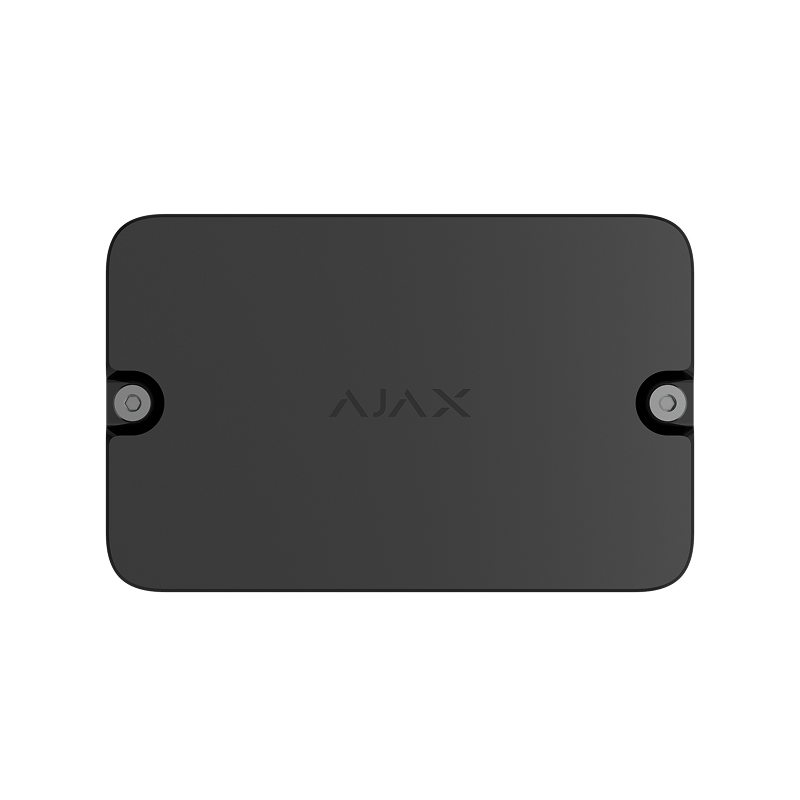

AJAX EN54 I/O Module (2X2)

#AJAX

#FireProtect

Wireless addressable module with two inputs and two outputs for a fire alarm system

ราคา

6,400.00 บาท

ขออภัย สินค้าหมด

สอบถามข้อมูลเพิ่มเติม

EN54 I/O Module (2X2) Jeweller

Wireless addressable module with two inputs and two outputs for a fire alarm system

EN54 I/O Module (2X2) Jeweller has won the Red Dot Design Award

Pushing the boundaries of fire safety

EN54 I/O Module (2X2) Jeweller blurs the limits for use cases and compatibility in EN 54-certified Ajax setups. It automates responses to emergencies by integrating gates, door locks, lighting, or alert systems through the module outputs. Its inputs allow complementing the setup with beam smoke detectors, elevator control panels, HVAC systems, or other wired third-party devices to address any fire or life safety scenario. Designed to deliver an Ajax-level experience, the module offers out-of-the-box communication with the CIE, intuitive configuration via Ajax apps, and zero-hassle maintenance.

Discover EN54 Line

Wireless Ajax fire detection and alarm system designed for commercial and municipal sites

Watch on Youtube

Built to stand out

Automated control of electrical devices

Hassle-free setup and remote maintenance

Built-in radio communicators

Advanced integration of third-party devices

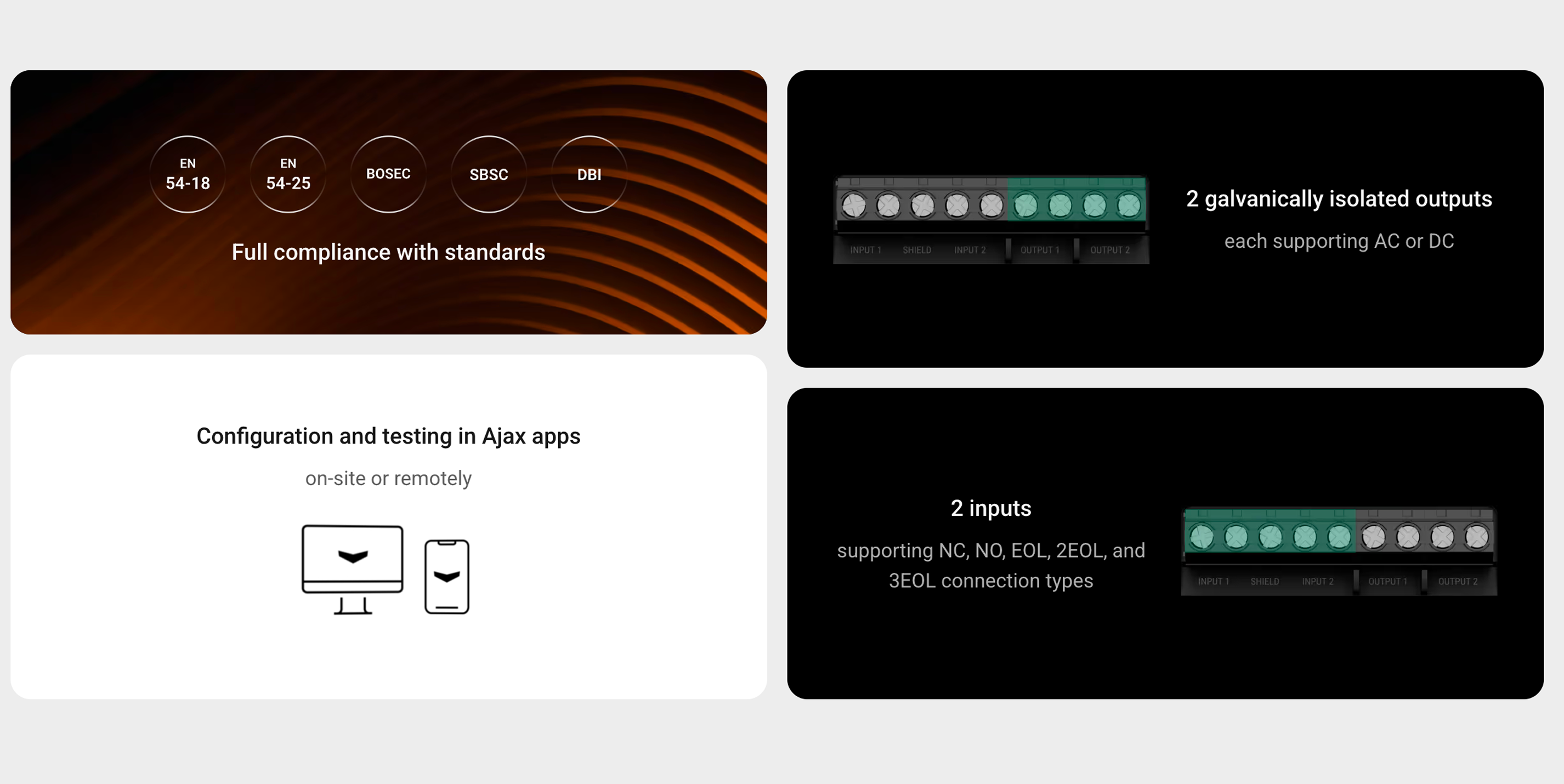

Key features

EN 54-certified fire and life safety solution

Reimagine fire safety with EN54 Line — a fully wireless system that delivers unmatched reliability for commercial and municipal sites. This solution is quick to deploy, even in large-scale projects. Each product is rigorously tested and certified to EN 54 standards. The comprehensive Ajax ecosystem creates a unique opportunity to integrate fire safety with intrusion protection, automation, and video surveillance into a single powerful solution.

Explorer

Device compatibility

Check

In an Ajax system, you can combine devices of all product categories: Intrusion protection, Video surveillance, Fire and life safety, or Comfort and automation. Create the system to suit your needs and manage it in a single interface.

Awards

Future-proof hardware

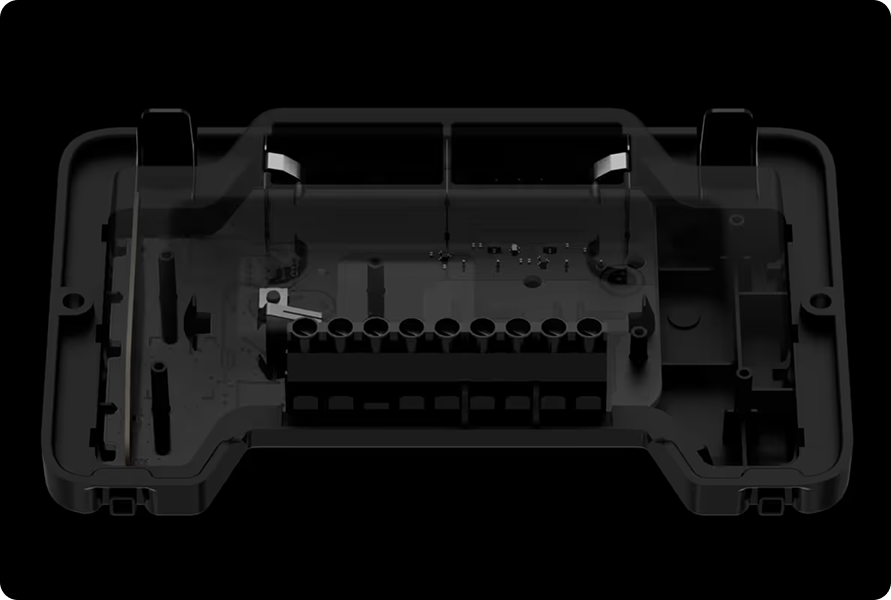

Protective housing

to prevent board damage during installation

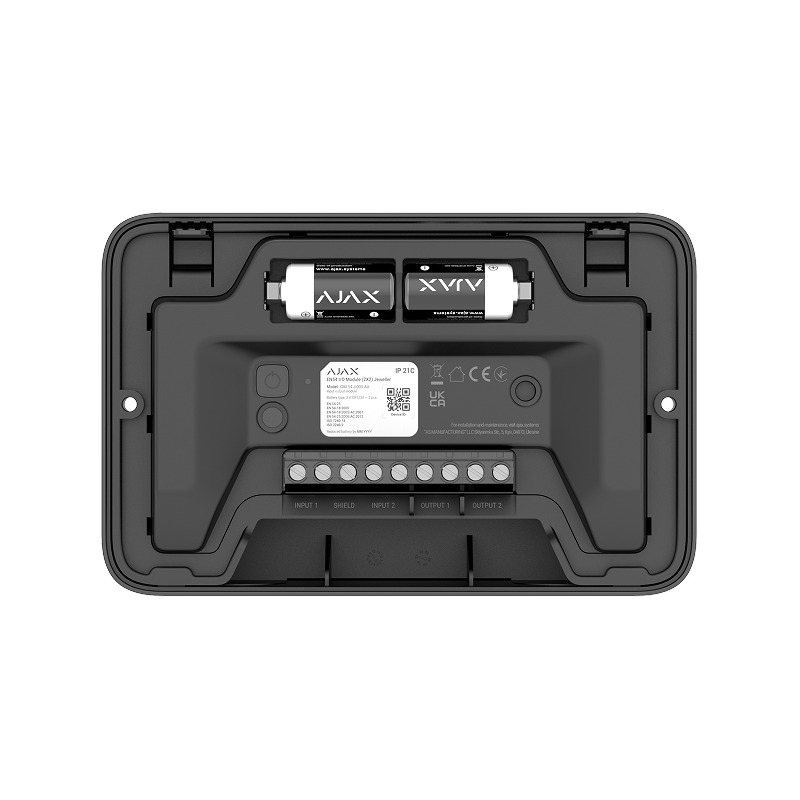

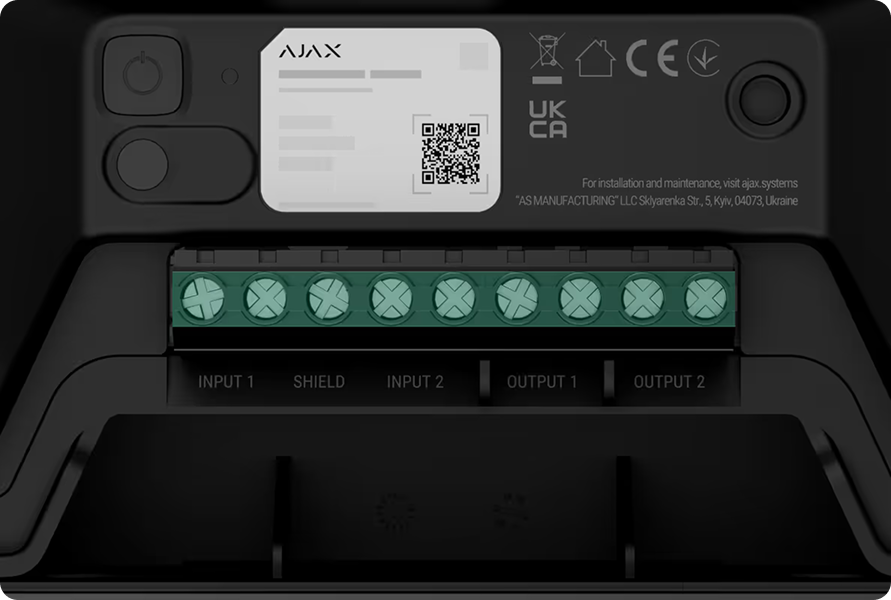

Terminal block

with labeled input and output terminals

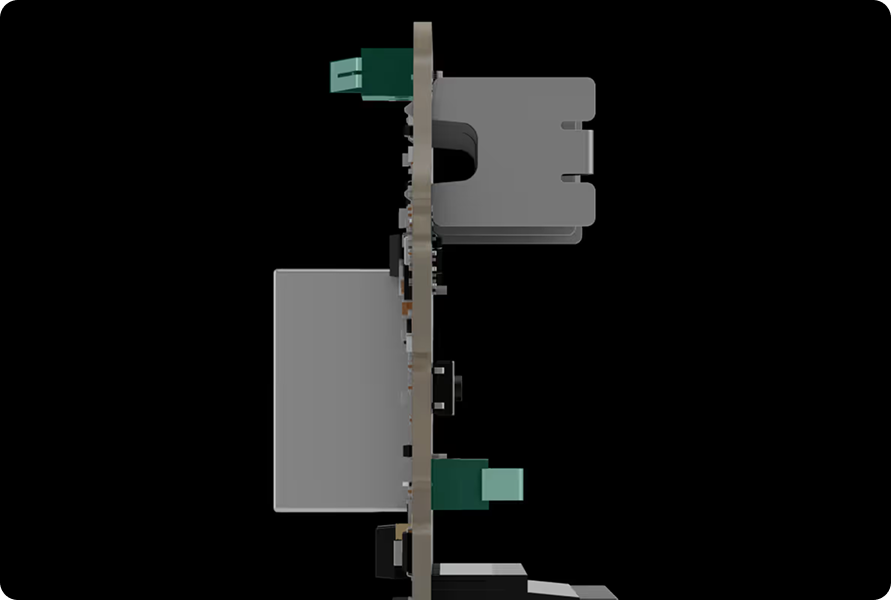

Two tamper buttons

to detect lid opening or device detachment

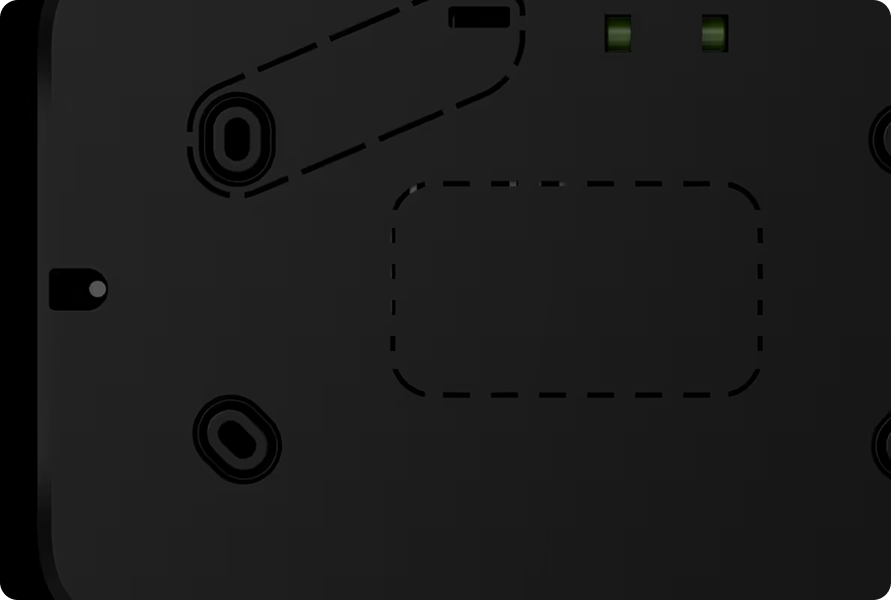

Recesses and perforations

to route cables from any side

Automated response at the first sign of danger

Integrate life safety equipment that enhances emergency response and evacuation from the very first moments of a fire alarm. EN54 I/O Module (2X2) Jeweller features two galvanically isolated outputs supporting both alternating and direct current, with a resistive load capacity of up to 10 A. This allows installers to connect a wide selection of electrical devices, from door locks and emergency lighting to elevator control and voice alarm systems. The Ajax ecosystem uses automation scenarios to activate the connected devices the moment an alarm is triggered, saving valuable seconds for a safe evacuation.

10—250 V~, up to 10 A

10—30 V⎓, up to 5 A

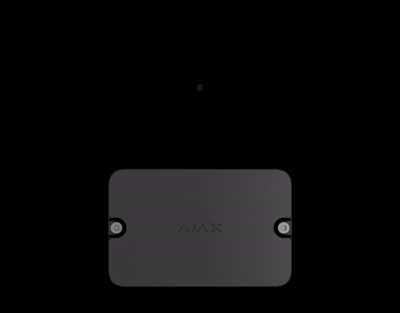

Smart integration of third-party devices

Make any existing fire and life safety equipment part of the Ajax setup or complement the system with devices outside the Ajax portfolio. Two inputs enable EN54 I/O Module (2X2) Jeweller to receive signals from third-party detectors, door controllers, elevator control panels, and other wired devices. The module supports the most common connection types, including 3EOL, which allows receiving up to three distinct signals from a single connected device.

Once integrated, third-party devices become a full-fledged part of the Ajax ecosystem. Installers can assign device parameters and locations to enable informative notifications upon activation. Each input can be configured with specific event types — such as fire alarm, gas leak, fault, evacuation, auxiliary alarm, or custom alarm — for additional clarity in emergency situations. All configuration is done in a few steps via Ajax apps.

1Two inputs supporting NC, NO, EOL, 2EOL, and 3EOL connection types

Selectable event types for connected devices

Installation experience beyond standards

With Ajax, technological excellence is not only about compliance — it is about design that cuts down on the installer workload and makes system setup pleasant, intuitive, and error-free. EN54 I/O Module (2X2) Jeweller offers installation as it should be — complete in just minutes.

Adding to the CIE

Adding EN54 I/O Module (2X2) Jeweller to the system is as simple as scanning a QR code and making a few taps in an Ajax app. An installer only needs to set key parameters, including the virtual room, fire zone, and exact device location. The same settings can be specified for the integrated third-party devices.

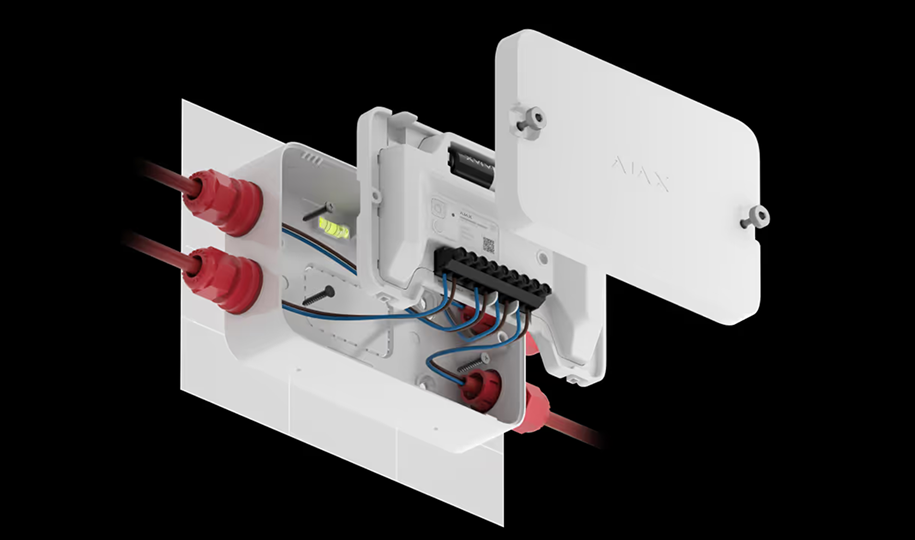

Installation

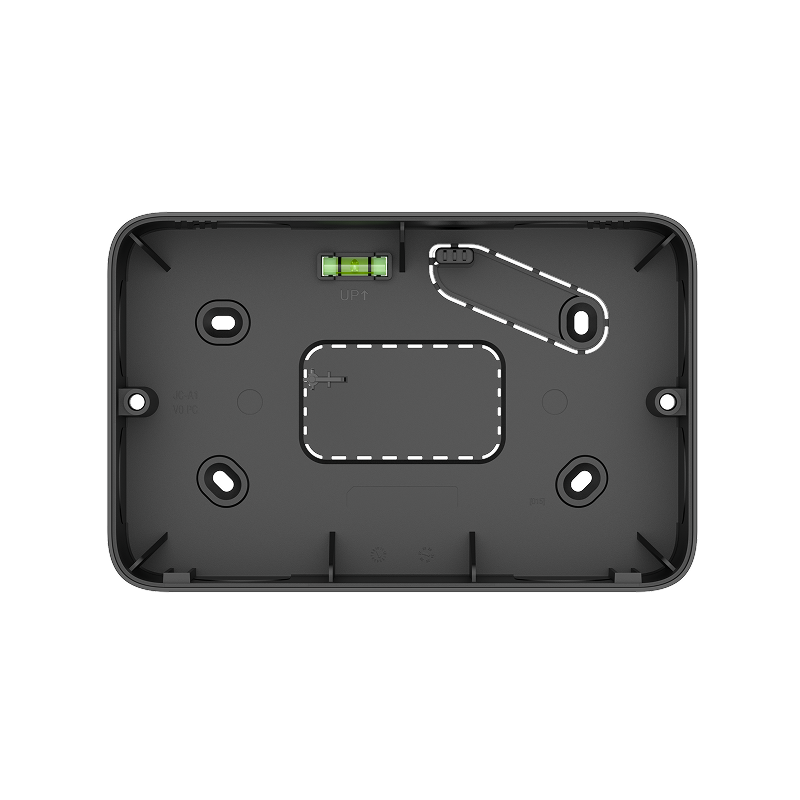

EN54 I/O Module (2X2) Jeweller is mounted easily onto the SmartBracket panel — no need to disassemble the casing. It's nearly impossible to damage the board during installation thanks to its protective housing. The module is designed for maximum flexibility: recesses and perforations allow cable routing from any side of the casing. Connecting third-party devices is just as straightforward: all terminals are labeled, and EOL resistors come included in the complete set.

Configuration

Configuration takes just a few steps — no complicated programming or manual scenario planning required. Installers can run a Jeweller signal strength test with a single tap, and the results appear in the event log in seconds. Within the same Ajax app interface, installers can easily set input and output parameters — including operating mode, default state, and event type — and configure automation scenarios as needed.

Configuring via toggles in Ajax mobile and desktop apps

Unique wireless technology

When every second counts, there's no room for delays or a dropped connection. That's why EN54 I/O Module (2X2) Jeweller uses the onboard Jeweller two-way radio communication protocol. The device maintains a stable connection to the CIE at distances¹ of up to 1,700 m out of the box — no external communicators required. For sites with obstacles, an Ajax range extender can double the coverage or use an Ethernet connection to create a separate radio network.

Up to 1,700 m of radio communication with the CIE or range extender¹

Built-in communicators

Frequency hopping and jamming detection

Jeweller

The Ajax radio protocol guarantees a stable connection and continuous device monitoring. Jeweller is designed to be less vulnerable to signal interference, extend device battery life, and promptly detect connection loss.

Learn more

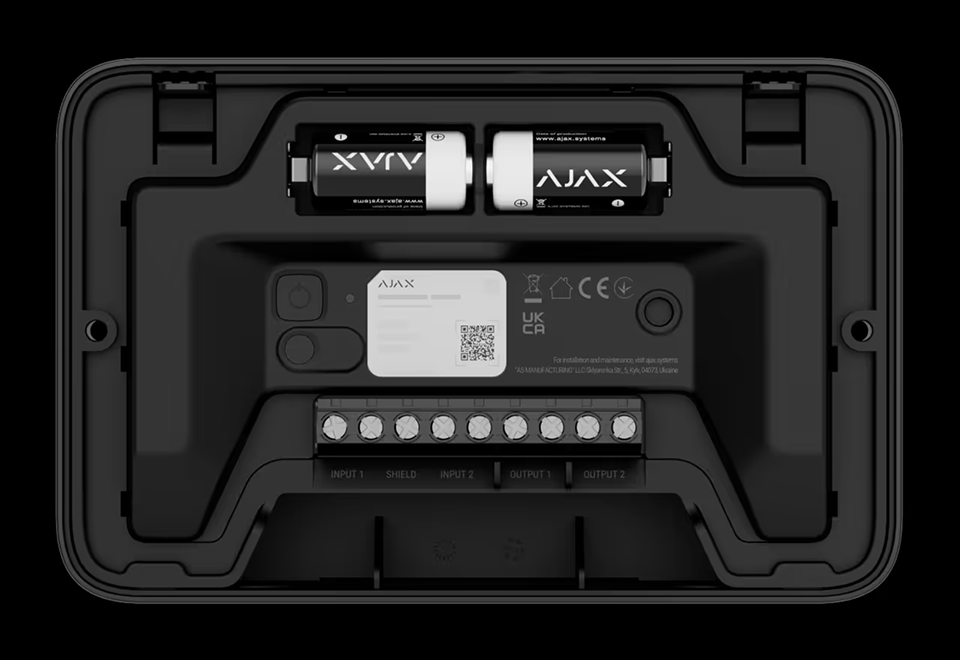

Efficient autonomy for years to come

Pre-installed batteries provide up to 5 years of autonomous operation. Real-time battery status is always visible in Ajax apps, so there is no need for unnecessary maintenance visits. Service companies also receive early low battery notifications for timely replacements. When it's time to change the batteries, the process is fast and straightforward: an installer simply removes the module's front lid.
