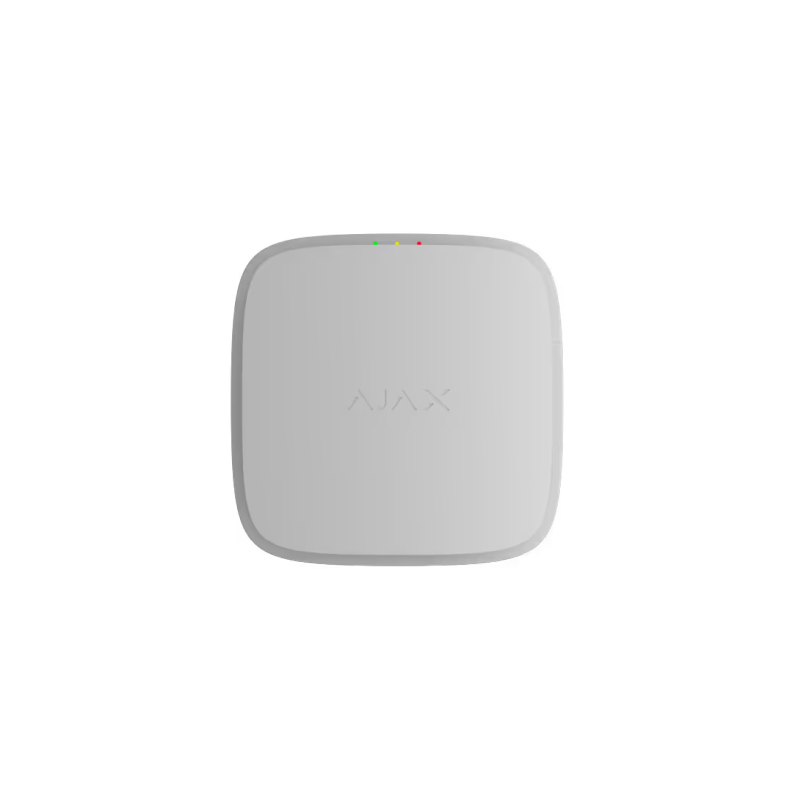

AJAX EN54 FireProtect (Heat/Sounder) (White)

#AJAX

#FireProtect

Wireless addressable point heat detector combined with a fire alarm sounder

ราคา

4,160.00 บาท

Color

จำนวน

ขออภัย สินค้าหมด

สอบถามข้อมูลเพิ่มเติม

EN54 FireProtect Jeweller detectors

Wireless addressable point detectors

Product versions

EN54 FireProtect (Smoke) Jeweller

Wireless addressable point smoke detector

EN 54-7, EN 54-25, BOSEC, SBSC, DBI

EN54 FireProtect (Smoke/Sounder) Jeweller

Wireless addressable point smoke detector combined with a fire alarm sounder

EN 54-7, EN 54-3, EN 54-25, BOSEC, SBSC, DBI

EN54 FireProtect (Heat) Jeweller

Wireless addressable point heat detector

EN 54-5, EN 54-25, BOSEC, SBSC, DBI

EN54 FireProtect (Heat/Sounder) Jeweller

Wireless addressable point heat detector combined with a fire alarm sounder

EN 54-5, EN 54-3, EN 54-25, BOSEC, SBSC, DBI

Compare product versions

EN54 FireProtect Jeweller
Smoke	Smoke/Sounder	Heat	Heat/Sounder
EN 54-7 EN 54-25 BOSEC SBSC DBI	EN 54-7 EN 54-3 EN 54-25 BOSEC SBSC DBI	EN 54-5 EN 54-25 BOSEC SBSC DBI	EN 54-5 EN 54-3 EN 54-25 BOSEC SBSC DBI
Smoke detection	Smoke detection	-	-
-	-	Heat detection	Heat detection
-	Audible alarms	-	Audible alarms

Rules met. Conventions shattered.

EN54 FireProtect Jeweller detectors combine certified reliability with effortless installation. This wireless series includes addressable point smoke and heat detectors, some of them combined with built-in fire alarm sounders. Each detector provides best-in-class detection accuracy thanks to Ajax's patented smoke chamber with a dual-spectrum optical sensor and two accurate thermistors. With built-in communicators, long battery life, and stable radio communication, the devices are ready for different-scale projects. No need to open the enclosure or run cables — installation and configuration take just minutes via Ajax apps. Early service notifications and automated maintenance reports via Ajax PRO Desktop ensure the system stays easy to support for years.

Discover Ajax fire and life safety category

Watch Ajax Special Event to learn what makes these products unique

Watch on Youtube

Built to stand out

Advanced threat detection with patented hardware and proprietary software

Fast installation with the SmartBracket mounting panel and setup via Ajax apps

Built-in radio communicators providing up to 1,700 m communication range with EN54 Fire Hub Jeweller¹

Multiple models to meet the needs
of any project

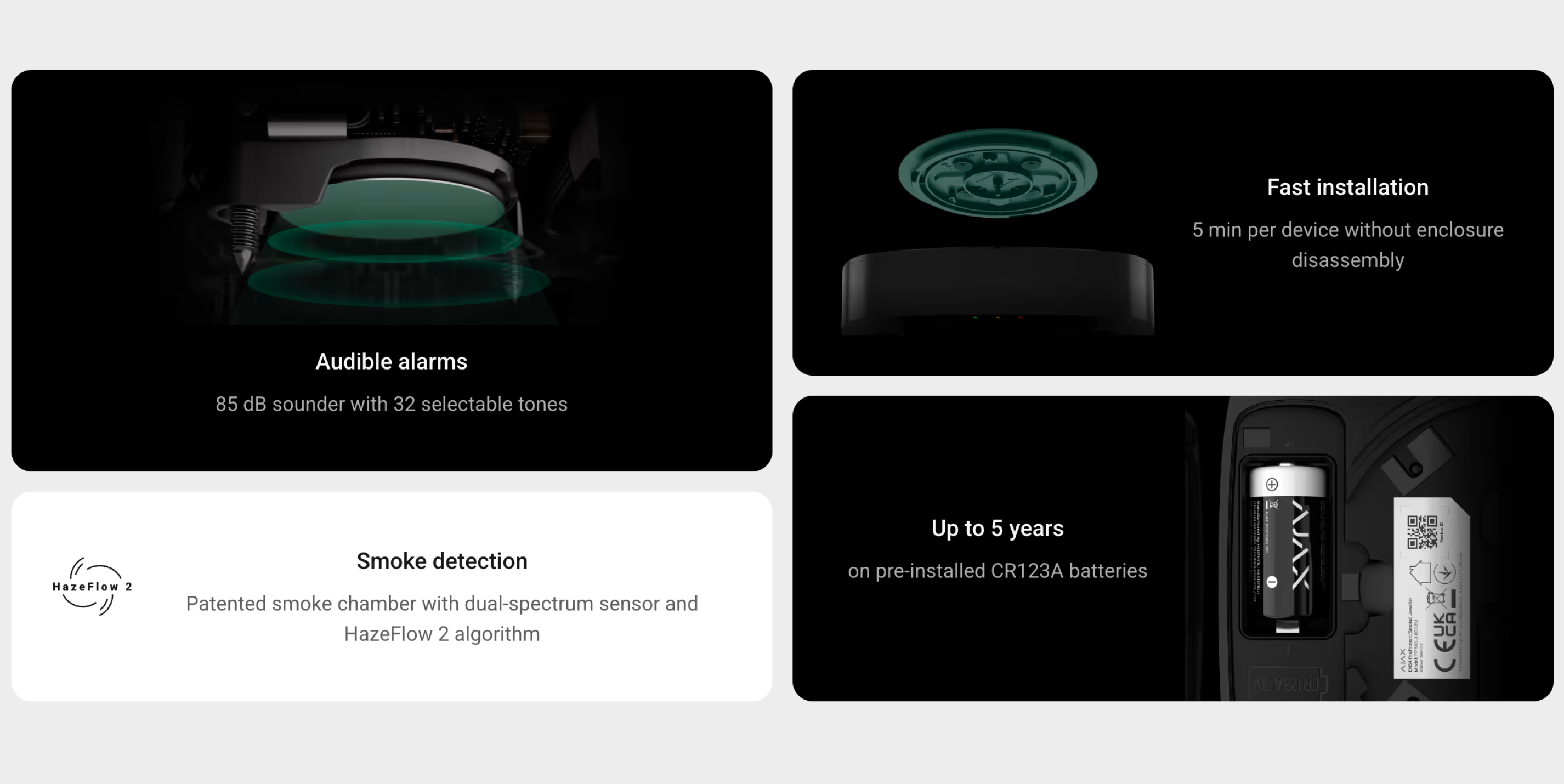

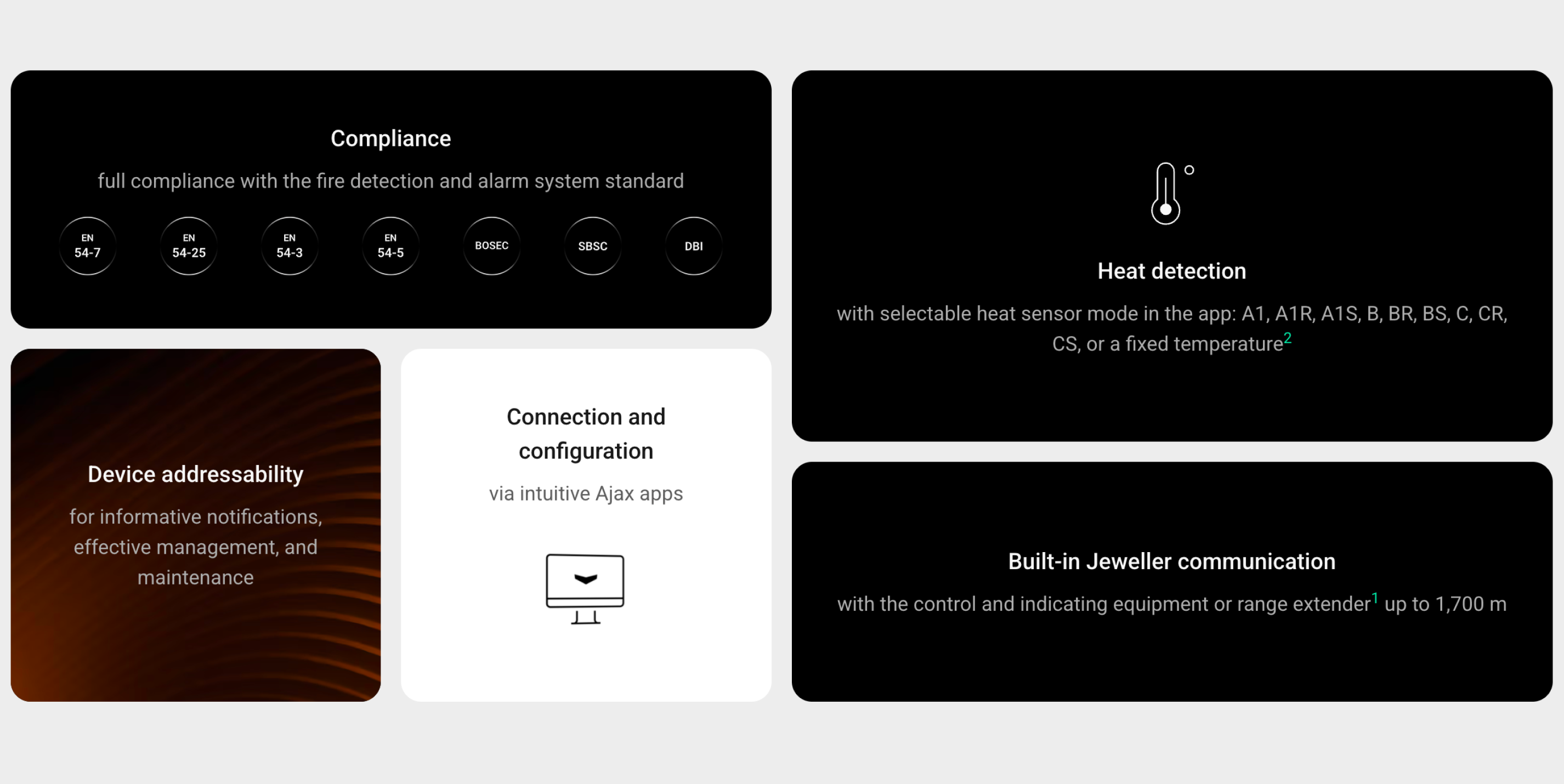

Key features

EN 54-certified fire and life safety solution

Reimagine fire safety with EN54 Line — a fully wireless system that delivers unmatched reliability for commercial and municipal sites. This solution is quick to deploy, even in large-scale projects. Each product is rigorously tested and certified to EN 54 standards. The comprehensive Ajax ecosystem creates a unique opportunity to integrate fire safety with intrusion protection, automation, and video surveillance into a single powerful solution.

Explorer

Device compatibility

Check

In an Ajax system, you can combine devices of all product categories: Intrusion protection, Video surveillance, Fire and life safety, or Comfort and automation. Create the system to suit your needs and manage it in a single interface.

Awards

Future-proof hardware

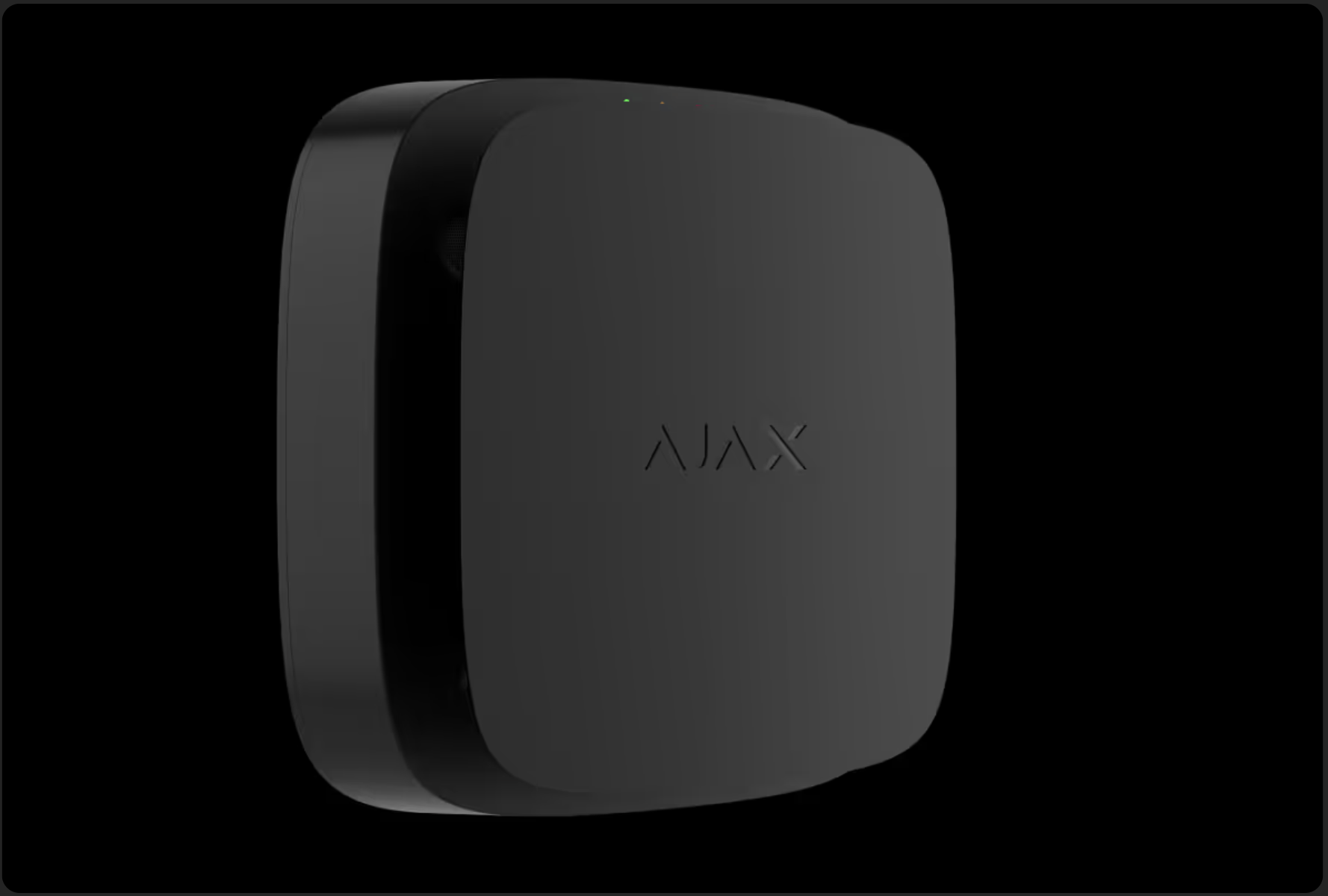

Minimalist design with hidden sensors and sounders

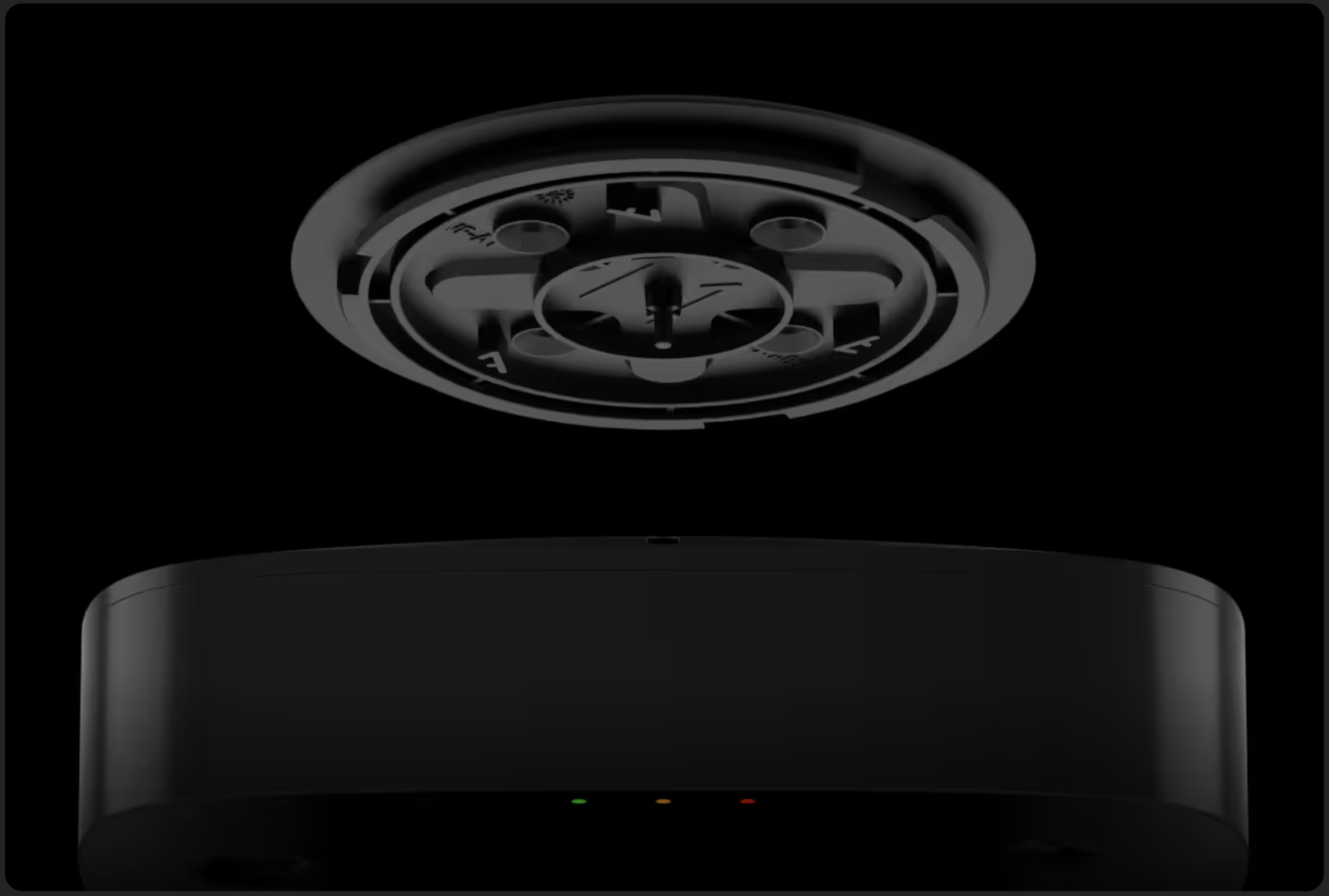

SmartBracket panel allowing for device rotation of up to 90°

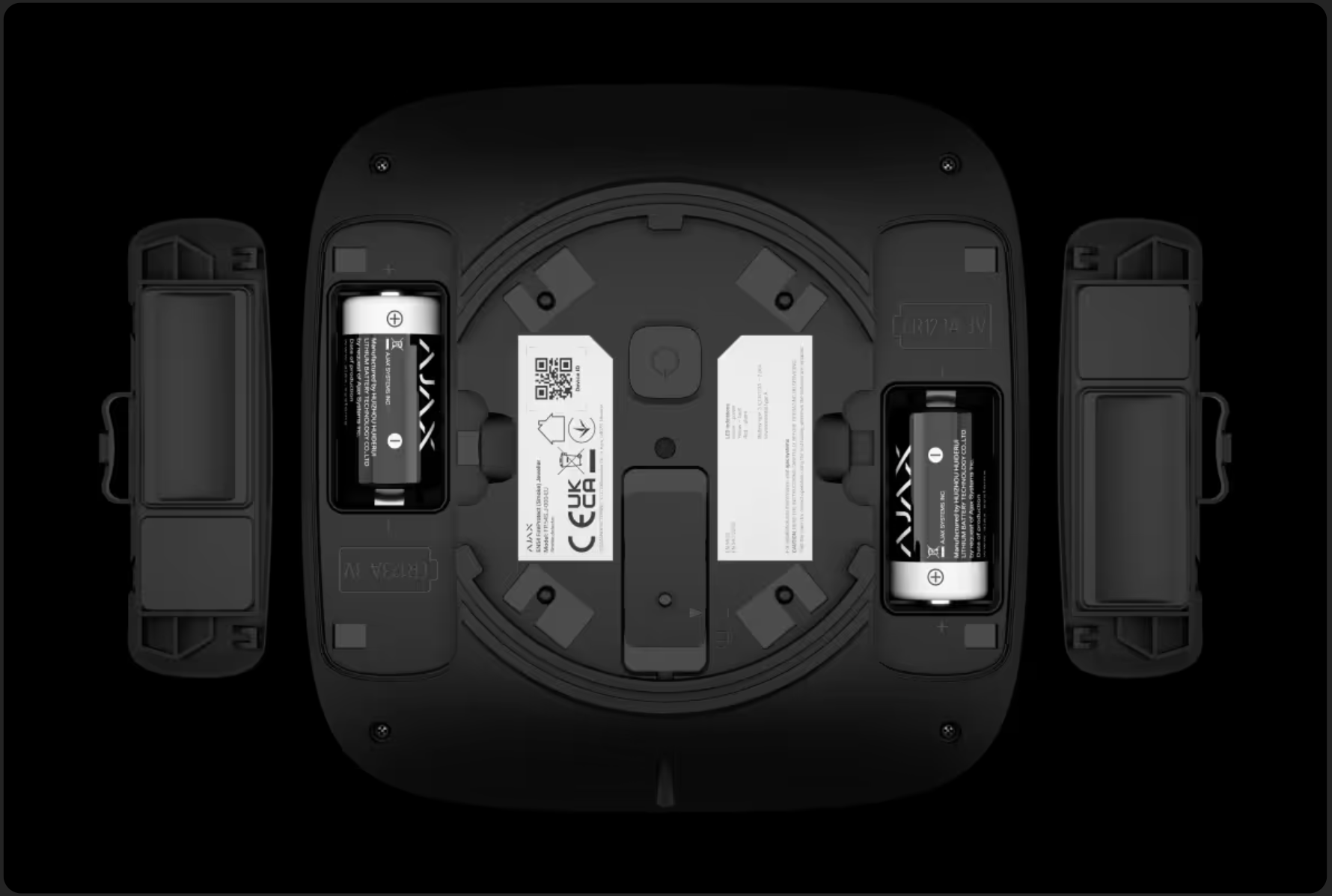

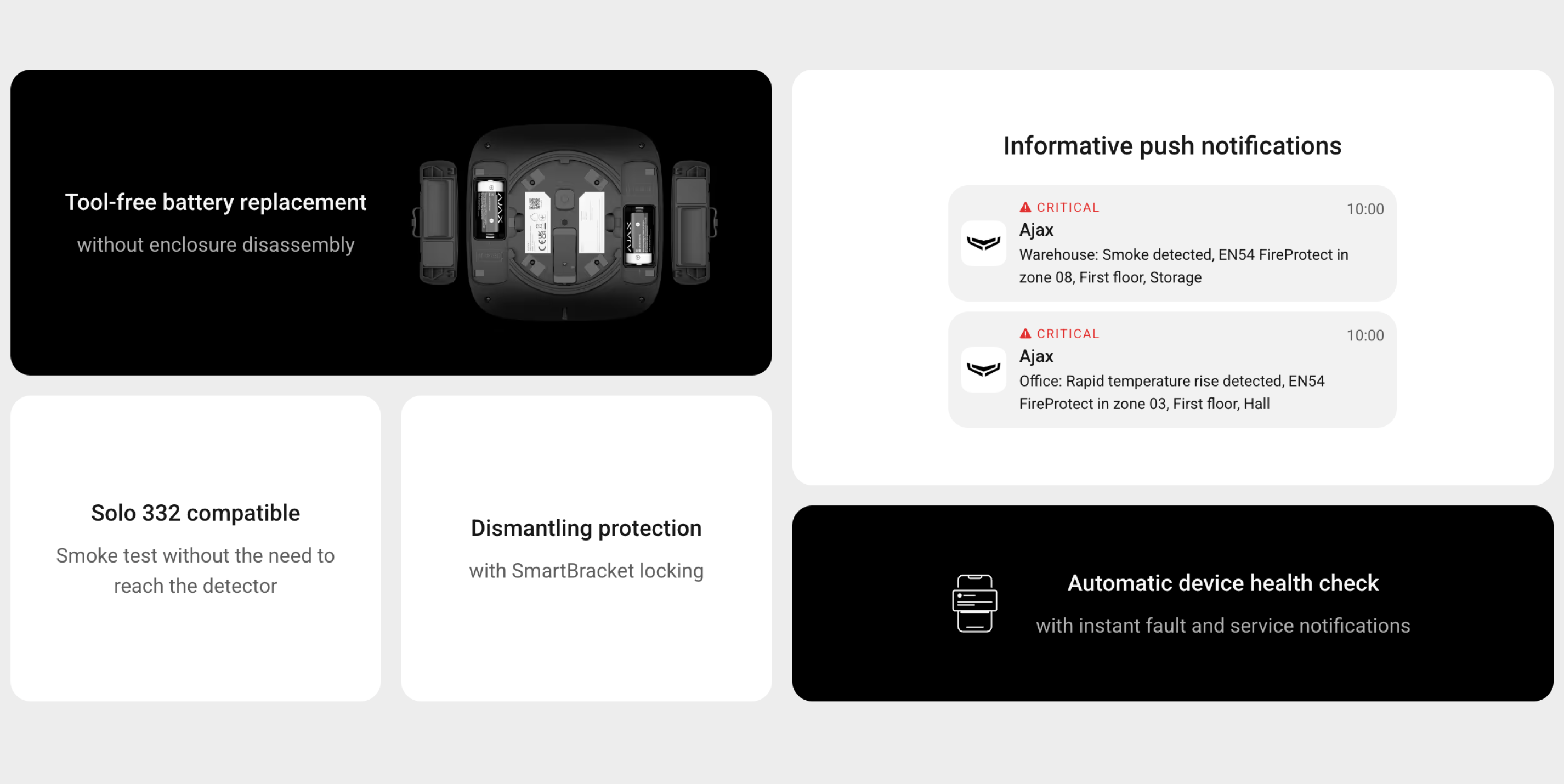

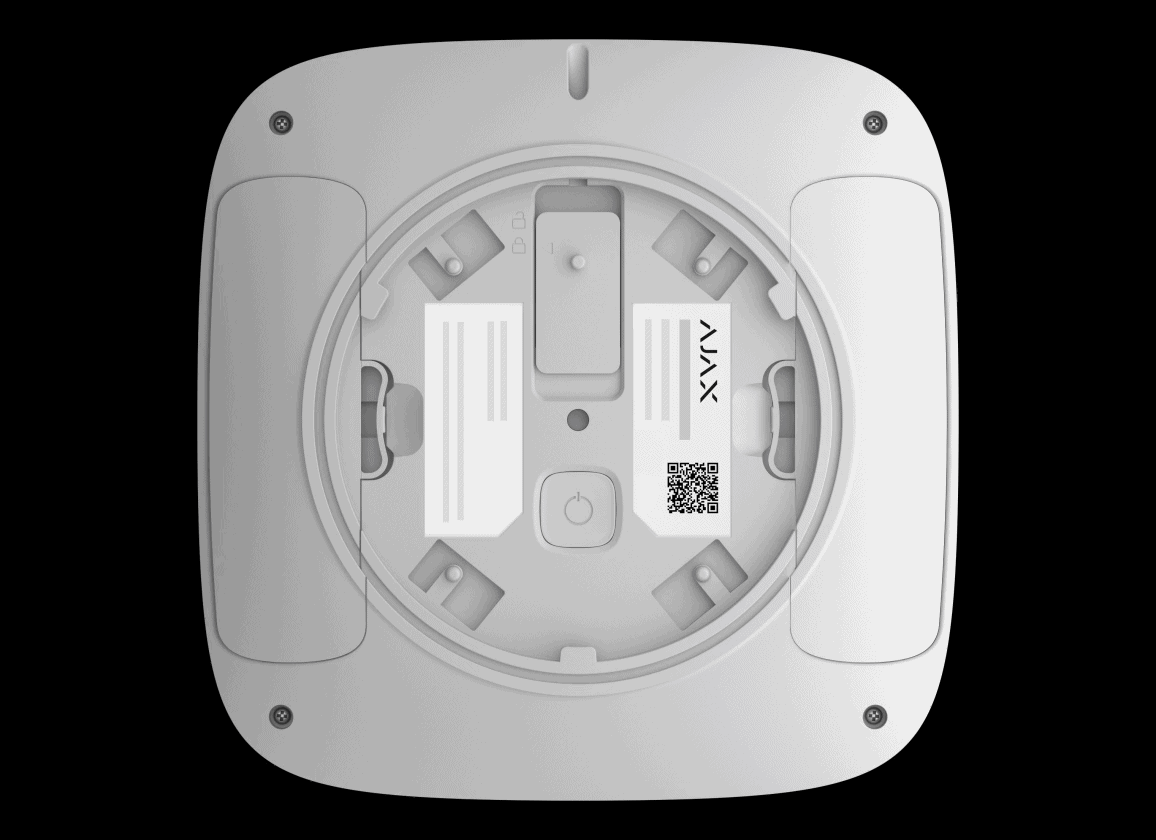

Battery covers designed for easy replacement

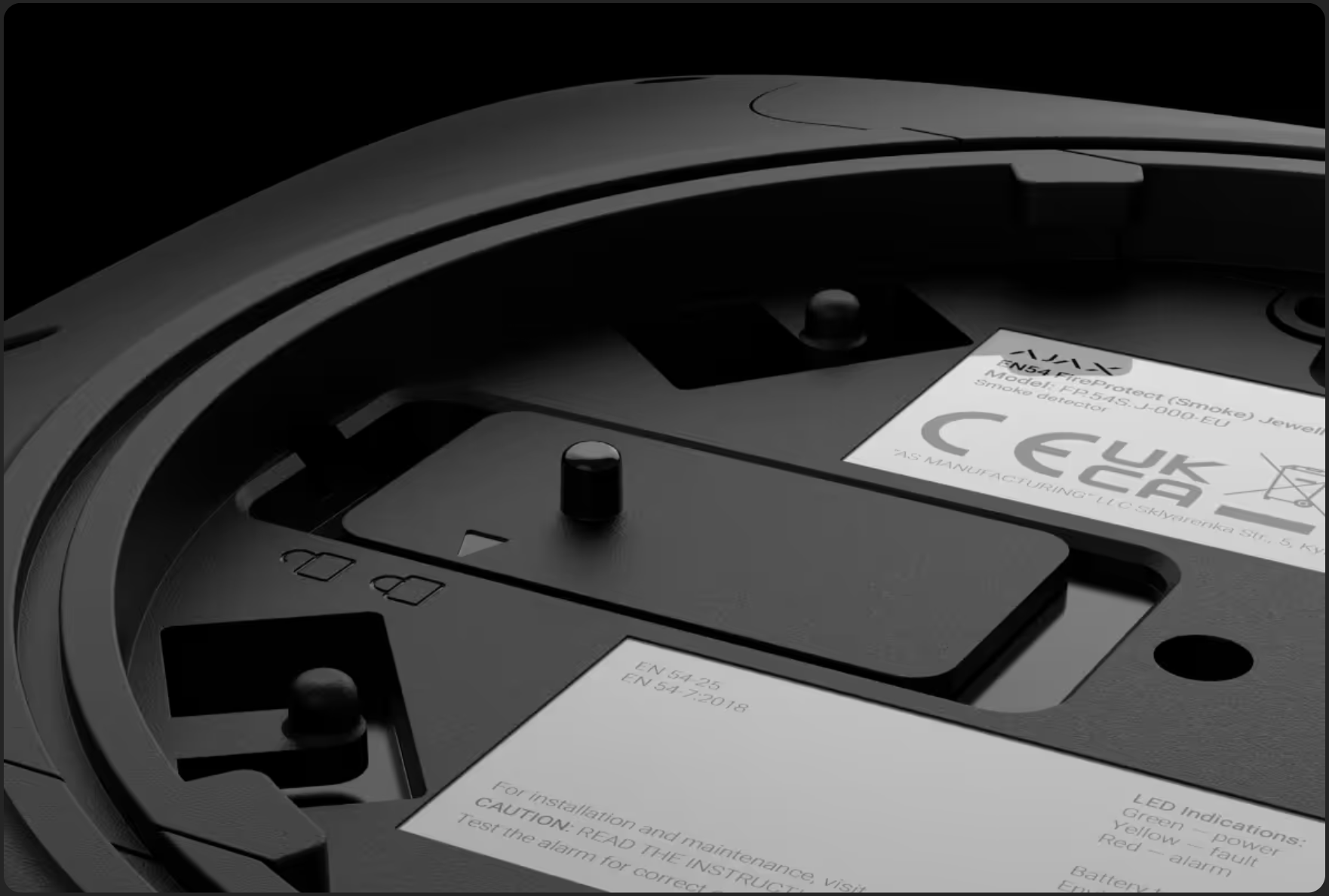

Locking mechanism to limit attempts at detaching the device

Detection without compromise

EN54 FireProtect Jeweller detectors meet EN 54 standards and combine the best available technologies to achieve unmatched accuracy, avoiding possible false alarms.

Smoke detection

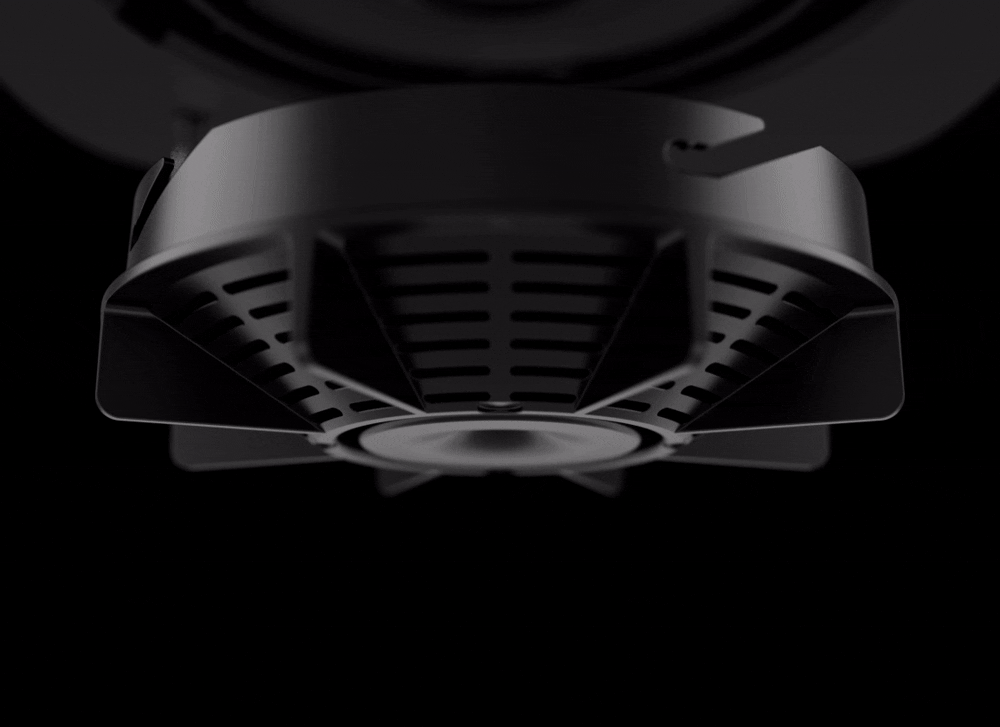

The unique smoke chamber, dual-spectrum optical sensor, and proprietary HazeFlow 2 software algorithm guarantee the speed and accuracy of fire detection.

The smoke chamber is hardwired with a dual-spectrum optical sensor that has blue and infrared LEDs with different wavelengths. It measures the microparticle concentration in the air to determine the size of the volatile particles inside the chamber and responds only to smoke.

The HazeFlow 2 algorithm analyzes and compares data from the dual-spectrum optical sensor to a specified pattern to define smoke from vapor or steam. The detector instantly raises the alarm when pattern dynamics indicate a real case of fire.

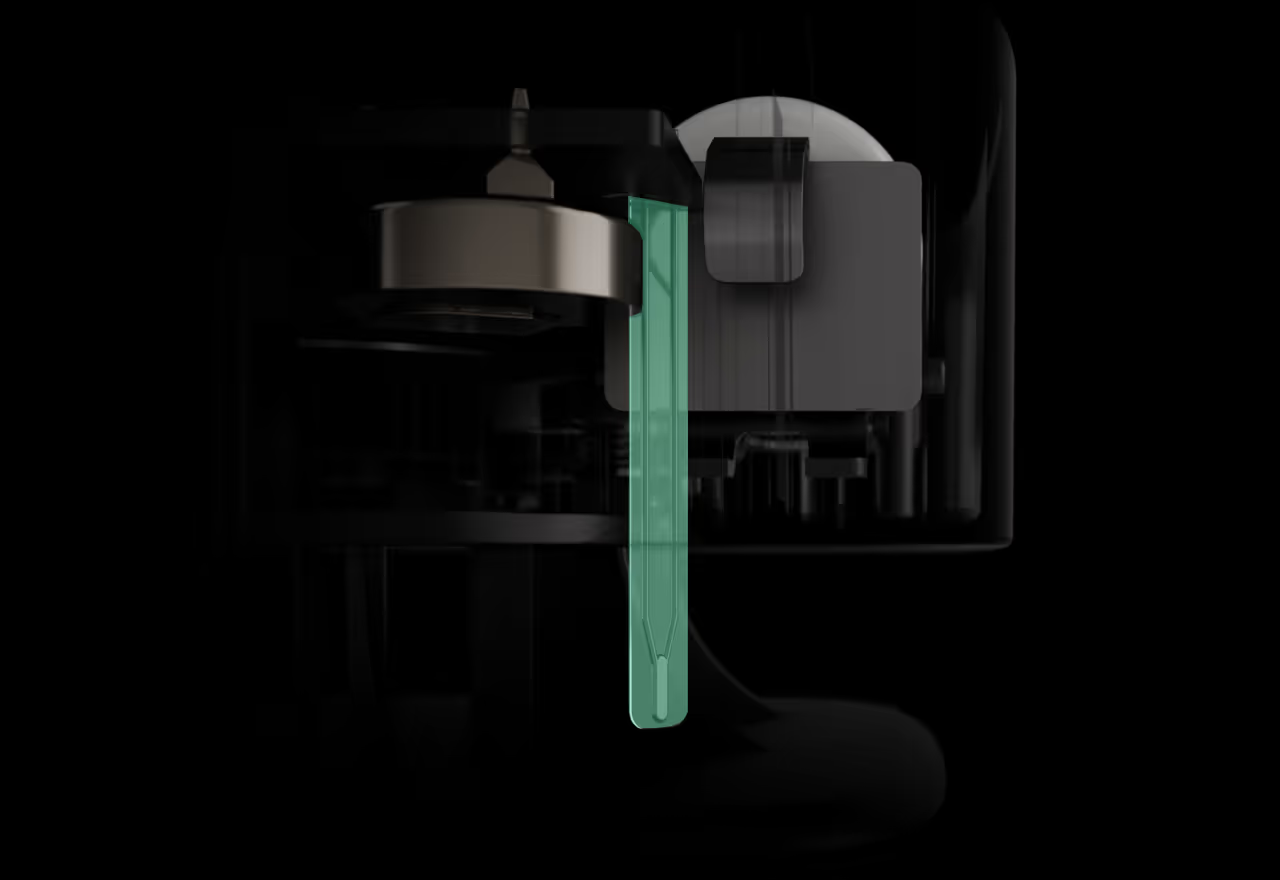

Heat detection

Two built-in thermistors detect a rapid temperature rise or threshold exceedance. They trigger an alarm when a rapid temperature increase or static temperature is detected. Heat detector modes — A1, A1R, A1S, B, BR, BS, C, CR, CS, or a fixed temperature² — can be selected in an Ajax app.

This approach ensures fast and accurate detection of flaming fires or heat build-up caused by smoldering, which is critical for timely response.

Tailored detection with EN54 FireProtect (Heat/Smoke) Jeweller

EN54 FireProtect (Heat/Smoke) Jeweller supports multiple detection modes to adapt to different site requirements.

In the default combined detection mode, one sensor is selected as primary, while the sensitivity of the secondary one is dynamically adjusted. As signs of fire develop, the detector lowers the activation threshold of the second sensor to confirm the event. This mode enables fast and reliable alarm verification while reducing false alarms caused by non-fire factors, such as steam or temporary temperature changes.

In independent detection mode, both smoke and heat sensors operate separately, so an alarm is triggered as soon as either sensor detects signs of fire, ensuring the fastest response.

Additionally, the detector can operate in smoke-only or heat-only mode.

Combined detection

One sensor acts as primary, while the second one confirms the alarm.

Heat and smoke

Each sensor works independently and can trigger an alarm.

Heat

Only the heat sensor is active.

Smoke

Only the smoke sensor is active.

Fast, intuitive, and error-free setup

EN54 FireProtect Jeweller detectors are ready to operate straight out of the box. An installer can mount the device in 5 minutes using the SmartBracket panel without opening the enclosure. The panel offers up to 90° for device rotation for perfect alignment. Arrows indicate the correct LED orientation. Ajax apps help quickly make the device a part of the ecosystem: just scan the QR code, assign a room and a zone, and specify the device location for easier maintenance and identification. The parameters from a device profile are always up-to-date and instantly available via Ajax apps. All settings are configured via toggles in an intuitive interface, eliminating the risk of human error.

Connection

Adding to a security system via QR code

Installation

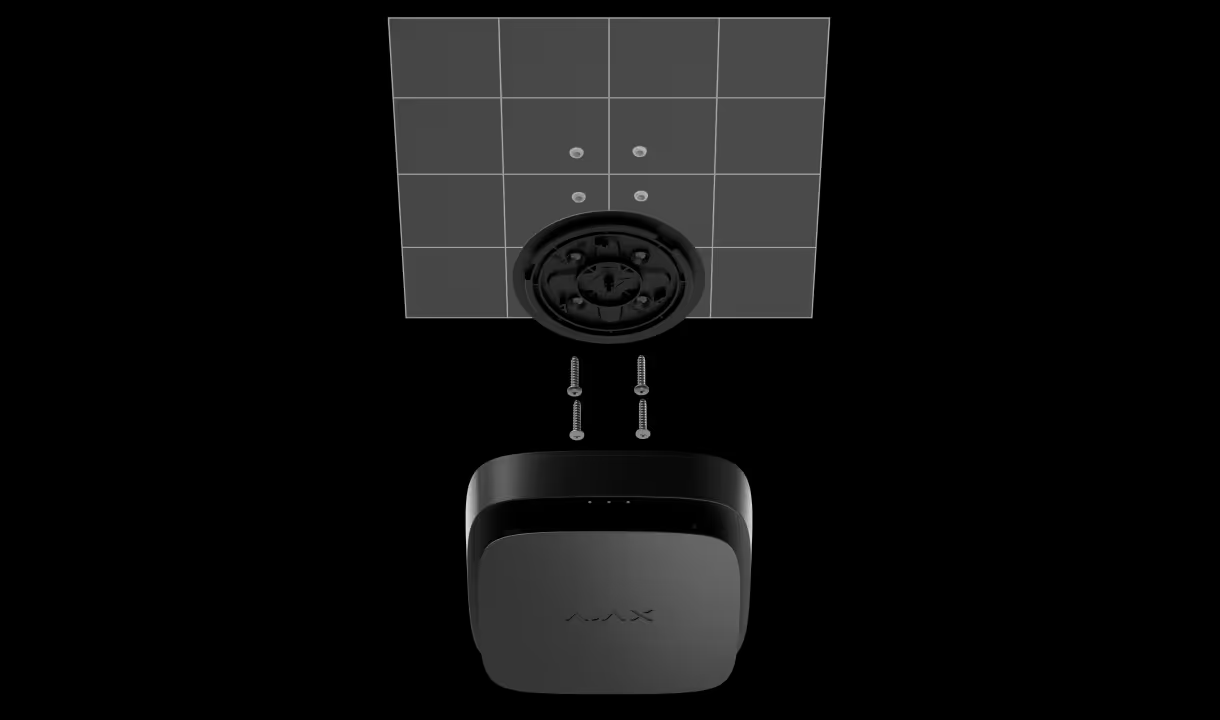

SmartBracket panel with an adjustable rotation angle — no need to disassemble the enclosure

Setup

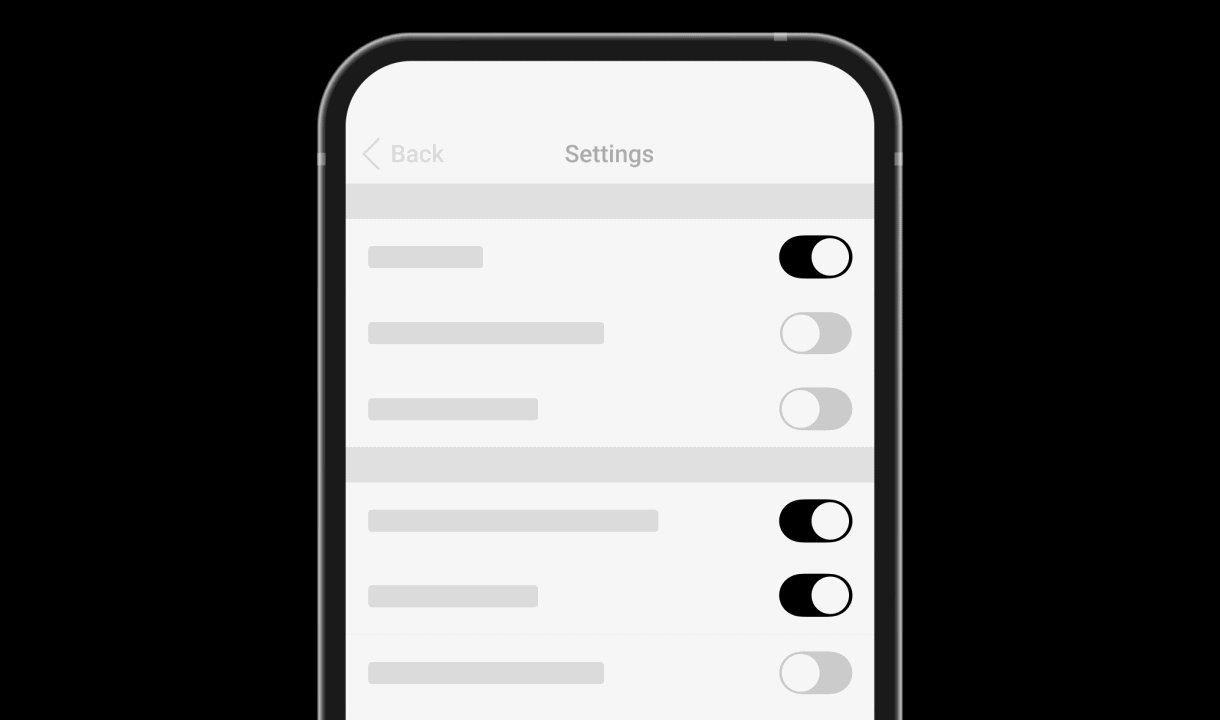

Configuring via toggles in Ajax mobile and desktop apps

Reliable wireless communication

EN54 FireProtect Jeweller detectors come with a built-in radio communicator — no additional modules or wiring are needed. The Ajax system uses two-way secure radio communication based on the Jeweller proprietary protocol. Devices maintain a stable connection with the control and indicating equipment (CIE) at distances¹ of up to 1,700 meters, and can operate through a radio signal range extender. The alarms reach the CIE in just 3 seconds.

The system optimizes power consumption to extend battery life, automatically adjusting the maximum power of radio transmitters in devices. The Ajax CIE uses radio hopping to protect against radio interference and signal interception. It also detects communication loss with a device in seconds, instantly notifying the monitoring station and users.

Up to 1,700 m of radio communication with a CIE or range extender¹

3-second alarm delivery

Built-in radio communicator

Frequency hopping and jamming detection

Jeweller

The Ajax radio protocol uses polling to display current device statuses and transmit alarms and events into the Ajax apps. Jeweller features encryption and authentication to prevent spoofing.

Learn more

Maintenance without the hassle

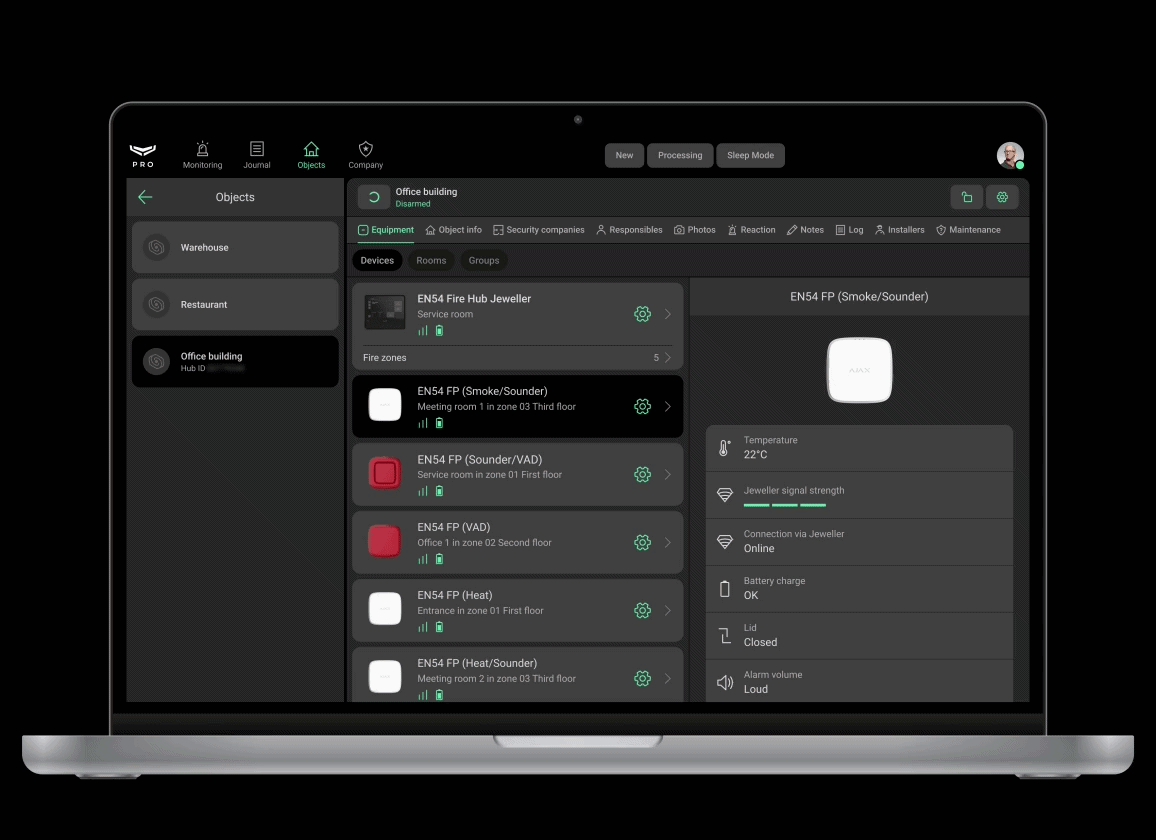

Remote system and device monitoring

All Ajax devices perform automatic self-diagnosis and report their states to the CIE. Essential parameters, including tamper alarm, communication, power supply, and sensor statuses, are continuously monitored. All the notifications and reports are available in Ajax PRO Desktop. The system sends early alerts, helping plan maintenance visits and optimize technician workload.

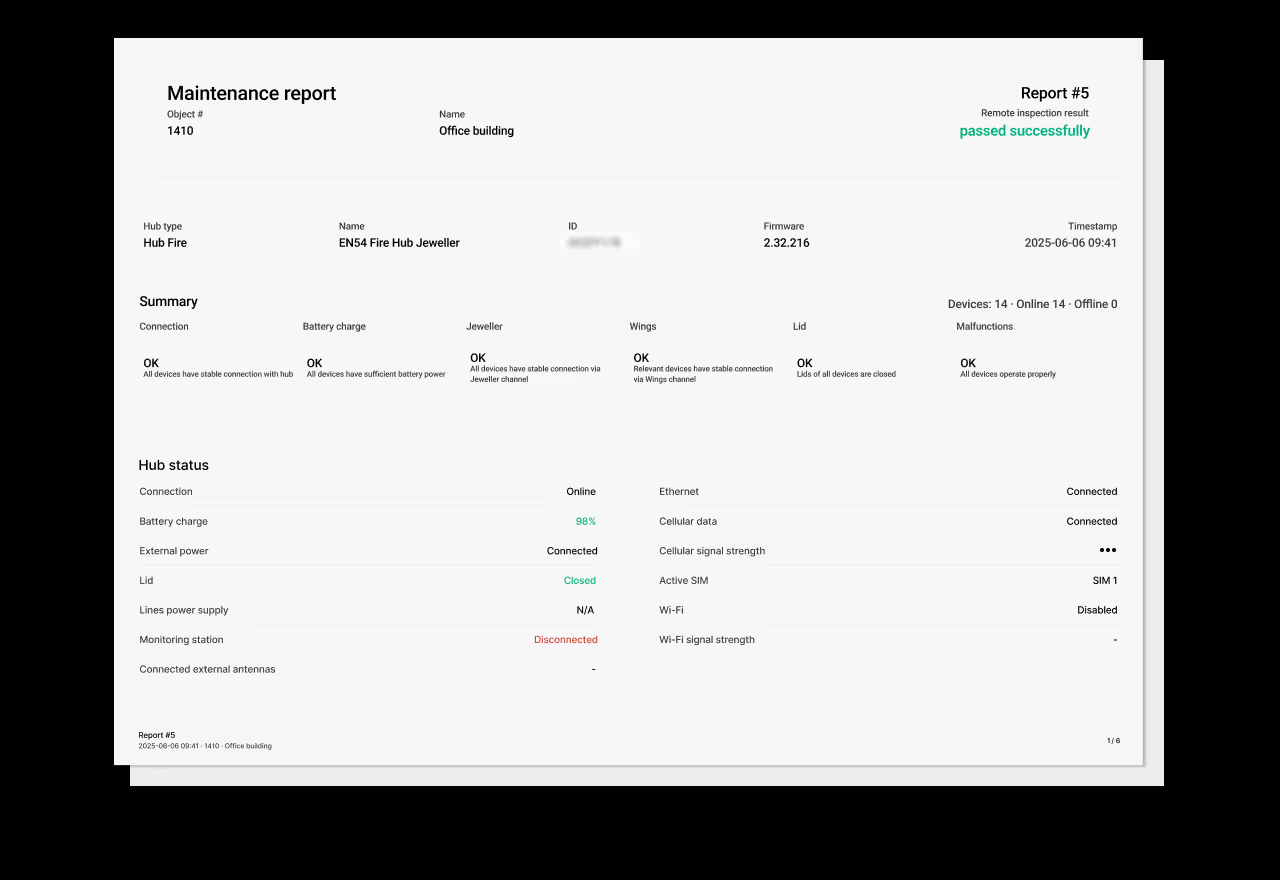

Automated maintenance reports

Security professionals can generate and download detailed reports on the status of all system devices. This allows them to identify maintenance needs without on-site visits and improve efficiency.

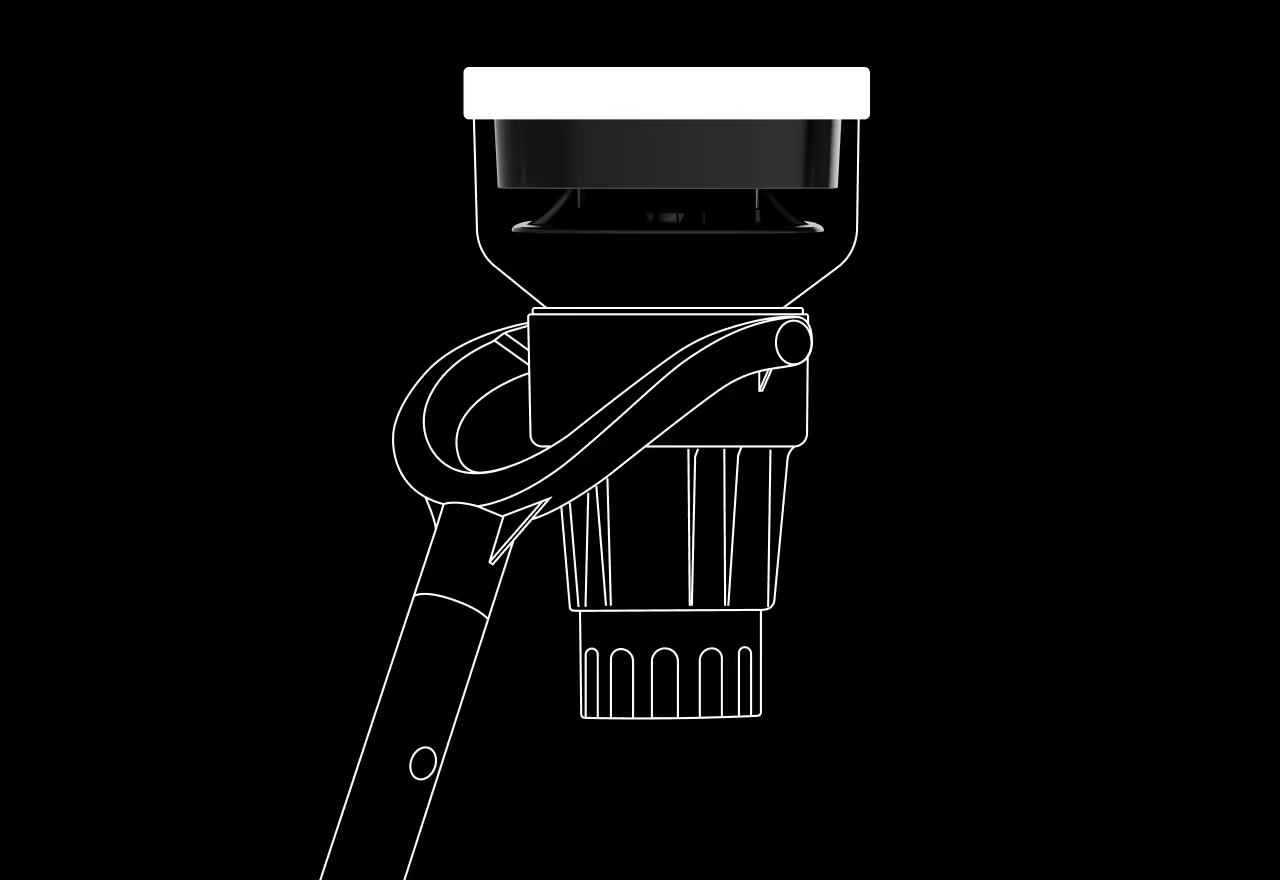

Industry-standard testing support

EN54 FireProtect Jeweller detectors are compatible with Solo 332 and other popular Smoke aerosols. In Test mode, filtering algorithms are turned off so the detector reacts to the sprayed smoke particles that replicate the conditions of smoke from a fire.
