Informative push notifications

In case of an alarm, the system instantly notifies users via Ajax apps with critical alerts that include alarm type, device name, facility name, and room. Each detector-triggered alarm is also assigned a code, enabling monitoring companies to identify it quickly. The CIE transmits alarms to the Ajax PRO Desktop app or third-party monitoring software using proprietary protocols. Upon receiving an alarm, operators always knows exactly where help is needed.

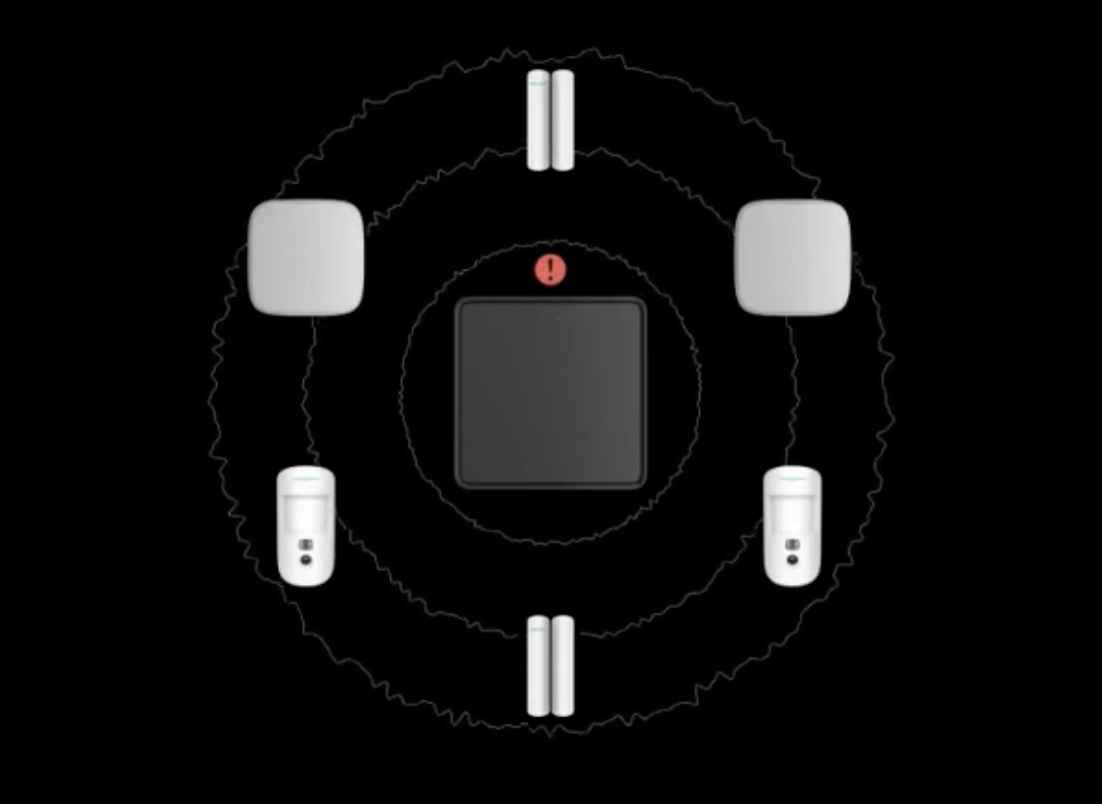

Jamming detection and frequency hopping

The CIE constantly monitors the quality of wireless communication with system devices. If data packets are lost, it automatically switches to a different frequency within the band and reports the interference. Both the security company and users are notified about jamming attempts, ensuring the system stays one step ahead of sabotage.

All data stored and transmitted by the system is protected with block cipher encryption featuring a dynamic key. This makes it virtually impossible to reprogram the device, substitute, or steal the data.

EN54 Fire ReX Jeweller enclosure features two tamper buttons that trigger an alarm if the device is detached from the surface or removed from the mounting panel. To further resist dismantling attempts, the range extender is secured with a lock at the bottom of the enclosure. The lock can only be opened with a special key tool included in the complete set.

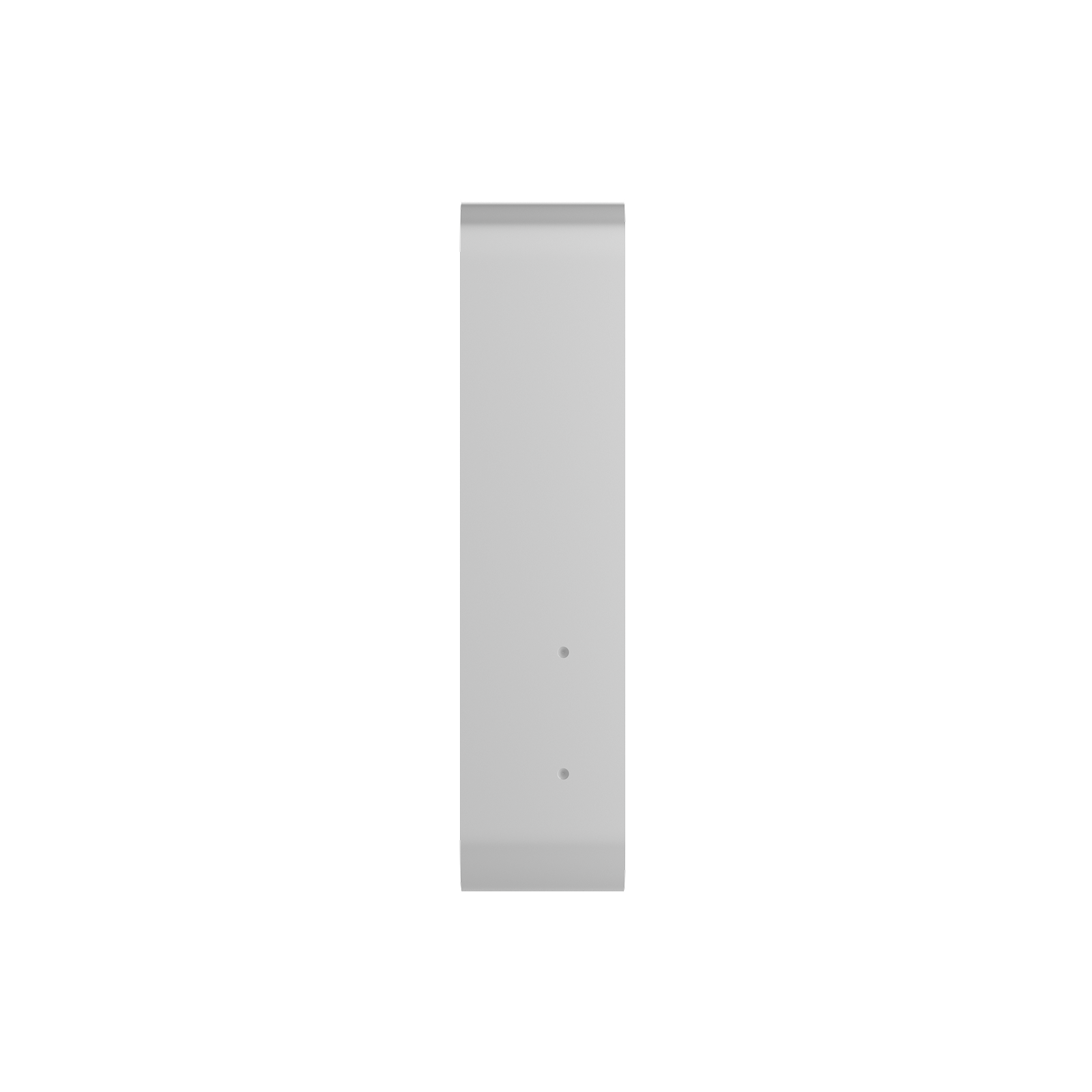

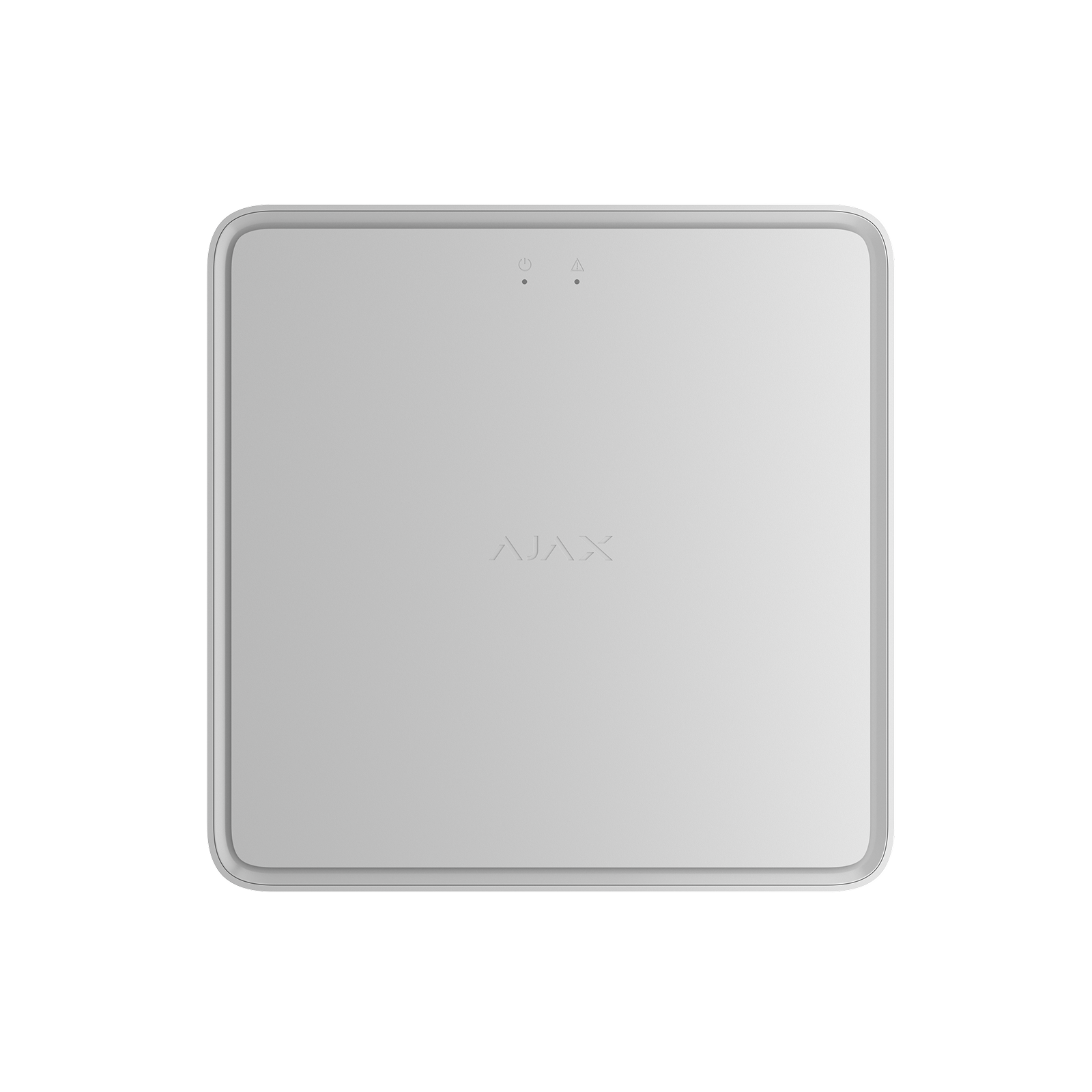

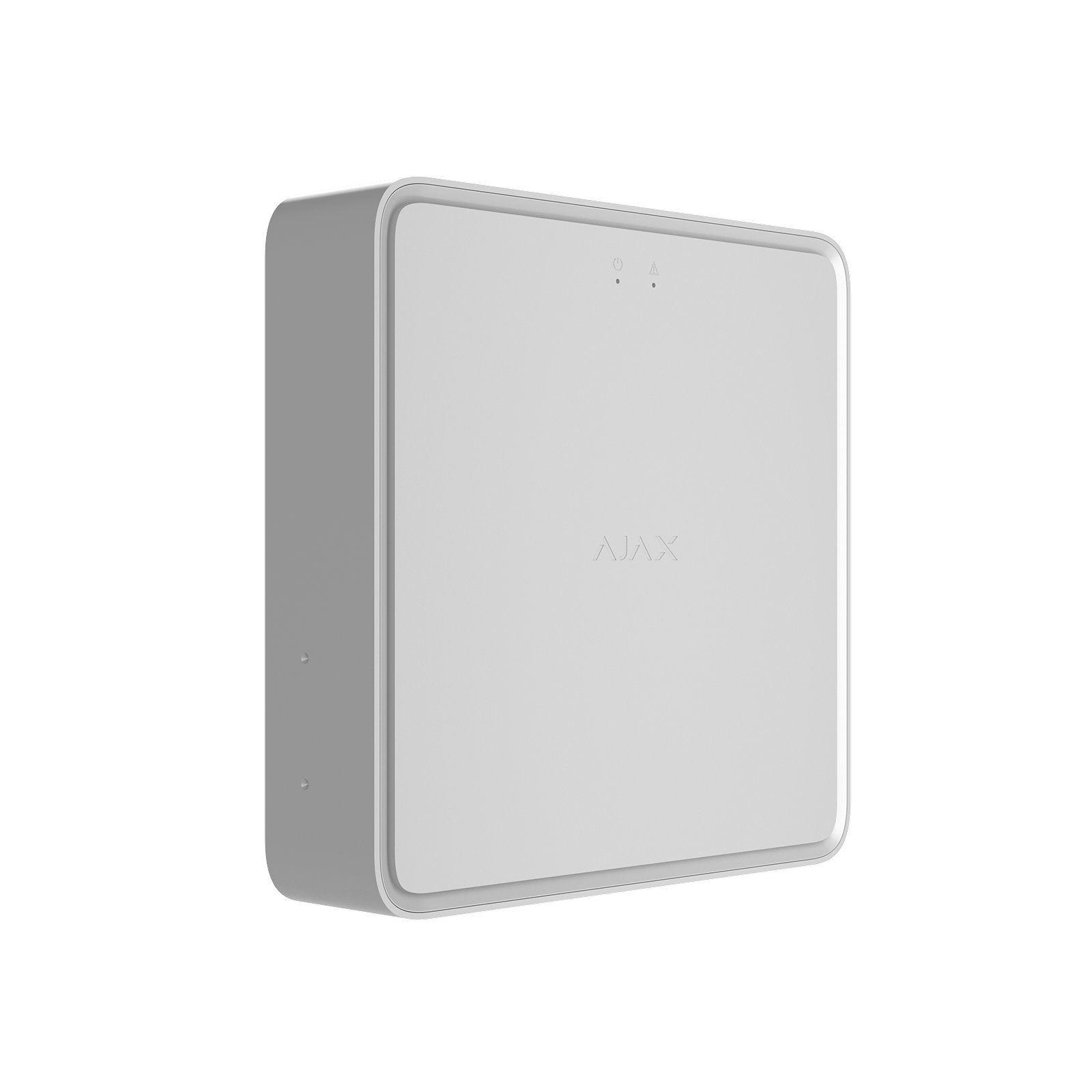

AJAX EN54 Fire ReX (White)

#AJAX

Wireless addressable radio signal range extender for a fire alarm system, supporting intrusion protection devices

ราคา

13,800.00 บาท

Color

จำนวน

ขออภัย สินค้าหมด

สอบถามข้อมูลเพิ่มเติม

EN54 Fire ReX Jeweller

Wireless addressable radio signal range extender for a fire alarm system, supporting intrusion protection devices

COMING SOON

More flexibility for professional installations

EN54 Fire ReX Jeweller expands the range of a wireless network and delivers a stable connection for EN54 Line devices across a large or complex facility. The range extender connects to the control and indicating equipment (CIE) wirelessly or via Ethernet, delivering reliable communication through steel and concrete. Up to 5 range extenders can operate within one Ajax system, and each supports any combination of devices for fire safety, automation, and intrusion protection. Mix devices within the CIE's limit to leverage the benefits of the integrated system, including visual verification of alarms.

Discover Ajax fire and life safety category

Watch Ajax Special Event to learn what makes these products unique

Watch on Youtube

Key features

EN 54-certified fire and life safety solution

Reimagine fire safety with EN54 Line — a fully wireless system that delivers unmatched reliability for commercial and municipal sites. This solution is quick to deploy, even in large-scale projects. Each product is rigorously tested and certified to EN 54 standards. The comprehensive Ajax ecosystem creates a unique opportunity to integrate fire safety with intrusion protection, automation, and video surveillance into a single powerful solution.

Explorer

Device compatibility

Check

Awards

Reliable safety for any facility

EN54 Line is suitable for a wide range of facilities: from small restaurants and gas stations to schools and office buildings. With a wireless communication range of up to 1,800 meters between EN54 Fire Hub Jeweller and system devices, it offers reliable performance even across large premises.

Learn more about EN54 Fire Hub Jeweller

To expand the coverage even further, EN54 Fire ReX Jeweller can be added to the setup. Up to 5 range extenders can operate within a single Ajax system, effectively doubling the network size. It's the perfect solution for facilities where devices need to operate at greater distances without compromising reliability.

• Communication range of up to 1,800 m

• Up to 5 range extenders within one system

• Coverage of up to 35 km²

• Support for any device combinations within the CIE limits

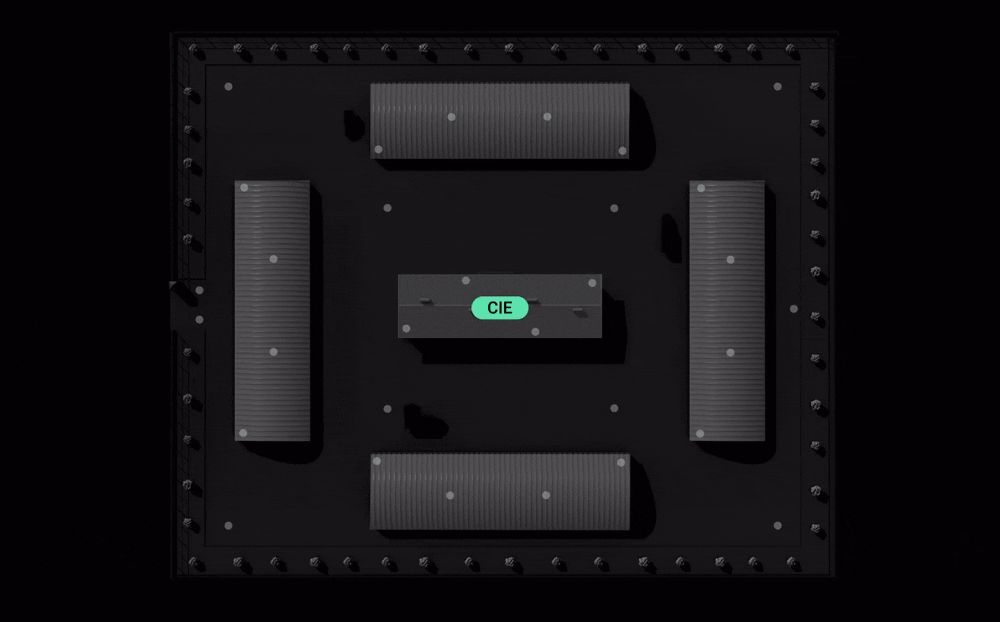

Reliable safety for any facility

EN54 Fire ReX Jeweller connects to the CIE both wirelessly and via Ethernet, with the wired channel as the primary. This ensures reliable performance even in the most demanding environments. A single Ajax fire alarm system can cover complex facilities — from business centers with underground parking to large warehouses with metal structures, or historic buildings with thick walls.

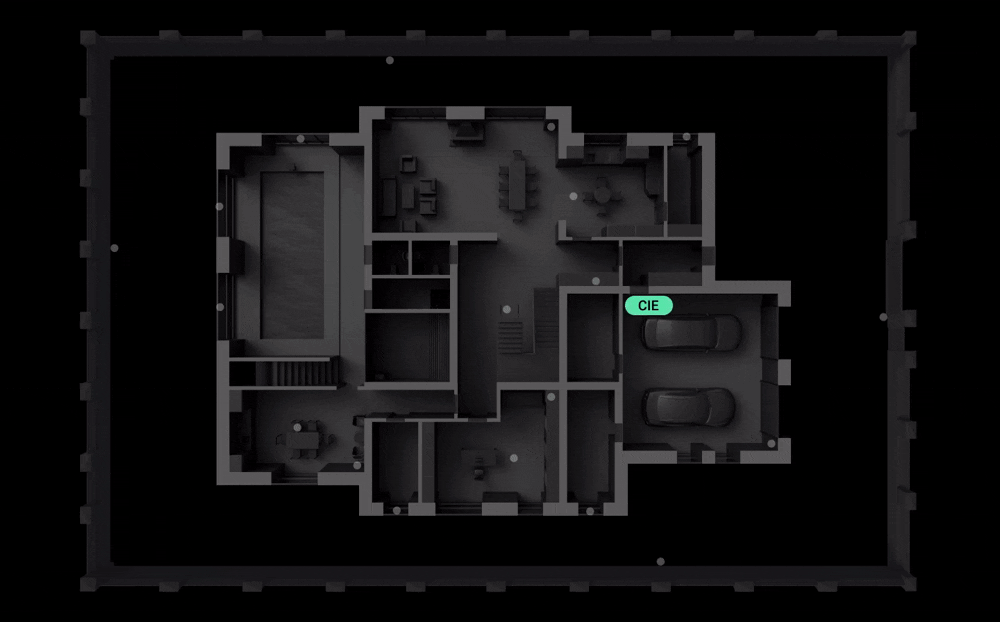

Historic building with thick walls

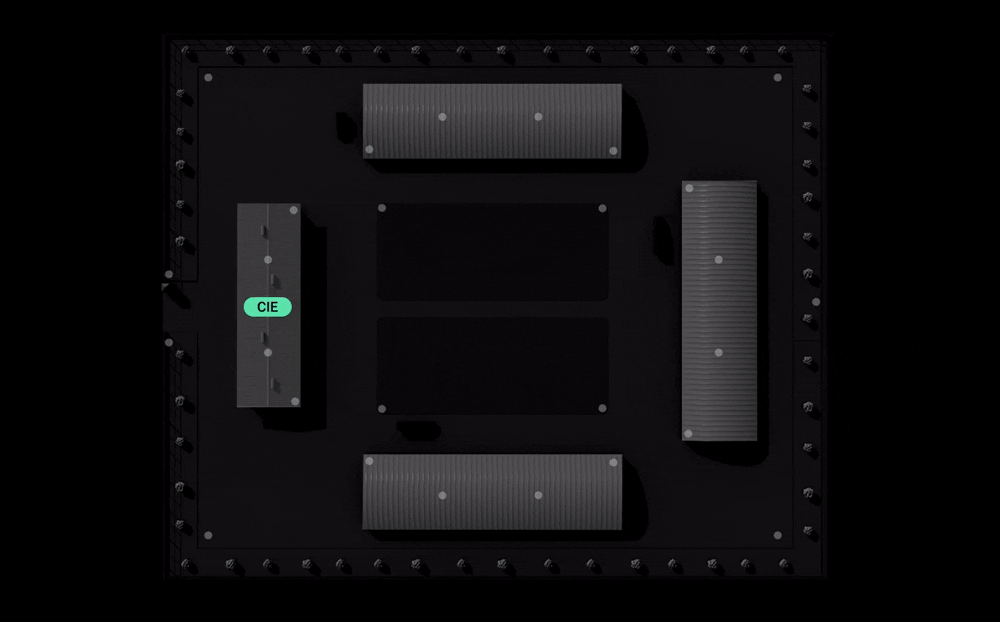

Business center with underground parking

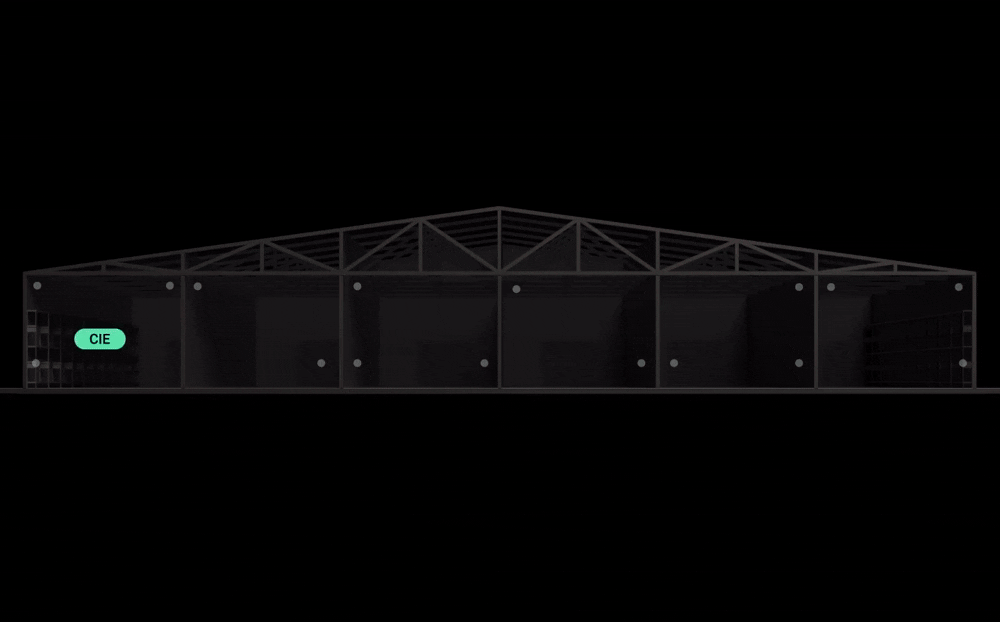

Sectional warehouse

Discover future-proof hardware

Ethernet connection module
for a stable CIE connection to the internet

Jeweller and Wings antenna
for reliable communication with system devices

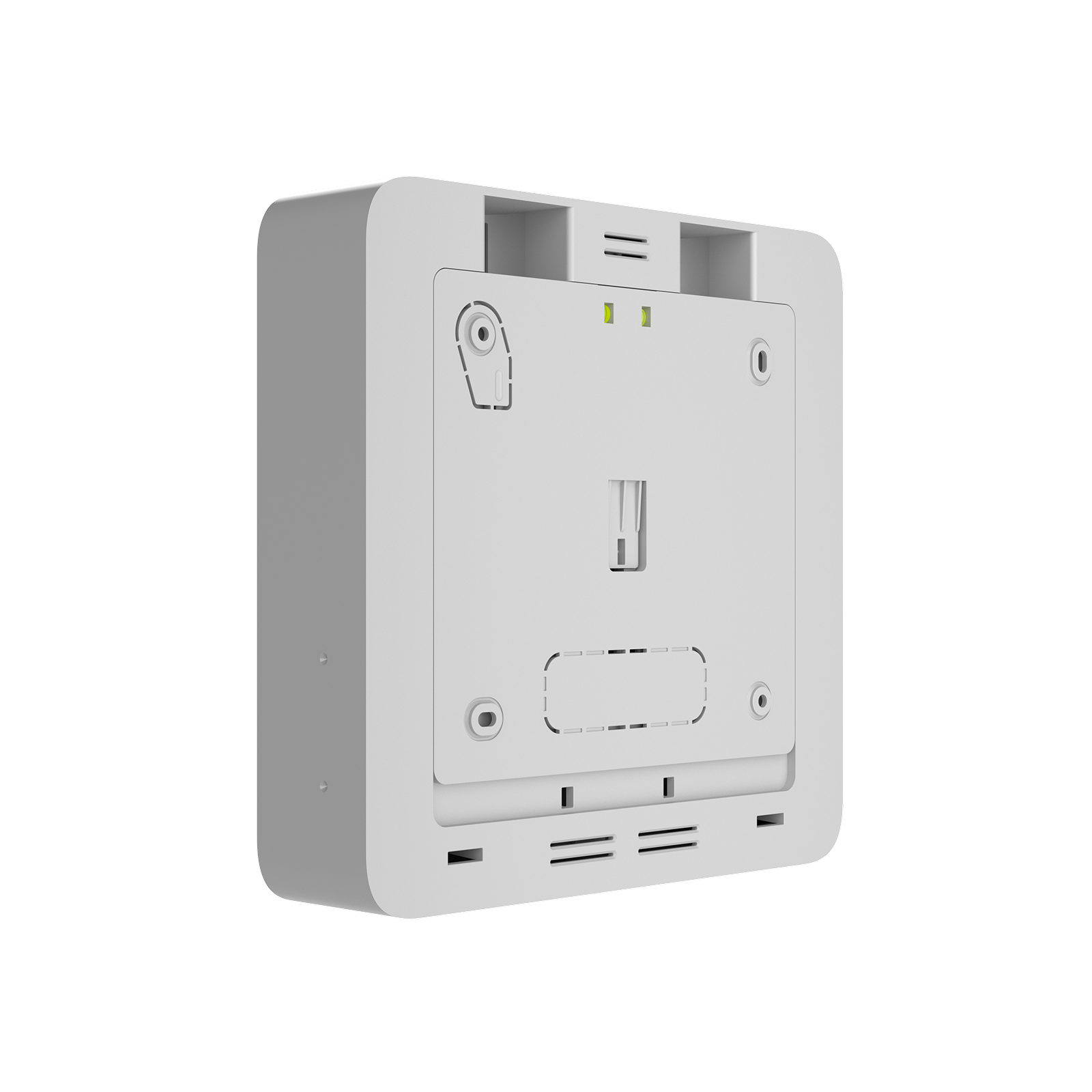

SmartBracket mounting panel
to install the range extender without disassembling the enclosure

Internal battery slot
allows for a hot swap without shutting down the device

LED indication
displays all mandatory system states as well as individual zone status

Two tamper buttons

to detect and report attempts to detach the device or remove it from the mounting panel

Communicators built in

EN54 Fire ReX Jeweller comes with a built-in radio communicator — no additional modules or wiring needed. Ajax systems use secure two-way communication based on proprietary Jeweller and Wings radio protocols. Devices maintain a stable connection with the CIE at distances of up to 1,800 meters. Alarm delivery is confirmed in line with the EN 54-21 standard. Events reach the CIE in just 3 seconds — more than three times faster than the standard requirement of 10 seconds.

Communication between the CIE and system devices

Jeweller communication protocol
Transmits the real-time device statuses, alarms, events, and all measured readings to the Ajax apps.

Wings and TurboWings communication protocols
protocolsTransfer visual verifications and large data packets for individual settings such as interface languages and firmware updates.

• Wireless range of up to 1,800 m

• Encrypted two-way radio communication

• Jamming and connection loss alerts

• Automatic packet retransmission in case of errors

Communication with Ajax server and apps

The CIE can be connected to four internet providers simultaneously. It uses an Ethernet/Wi-Fi connection as the primary channel and has two SIM cards that support 2G/4G (LTE) as backups. If the primary channel is lost, the CIE automatically selects the SIM with the strongest signal. Switching between channels takes seconds.

Fast, intuitive, error-free setup

EN54 Fire ReX Jeweller comes fully assembled and ready to operate right out of the box. The range extender can be installed in minutes, without opening the enclosure for mounting. Ajax apps help integrate the device into the ecosystem in no time: just scan the QR code, assign a room and zone, and specify the device location for easier maintenance and identification. Device profile parameters are always up-to-date and instantly available in the apps. All settings are configured via toggles in an intuitive interface, eliminating the risk of human error.

Connection

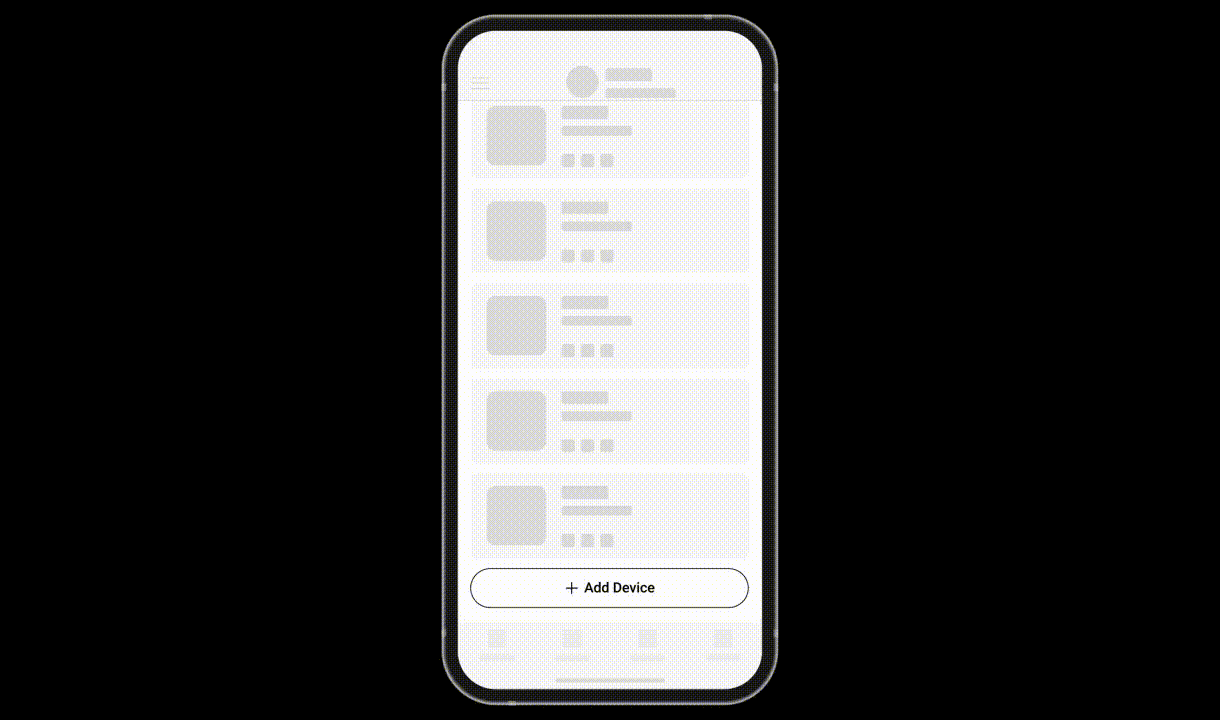

Adding the device to a security system takes just a QR code scan. All setup, connection checks, and coverage tests are handled in Ajax PRO apps — no complex configuration or programming required.

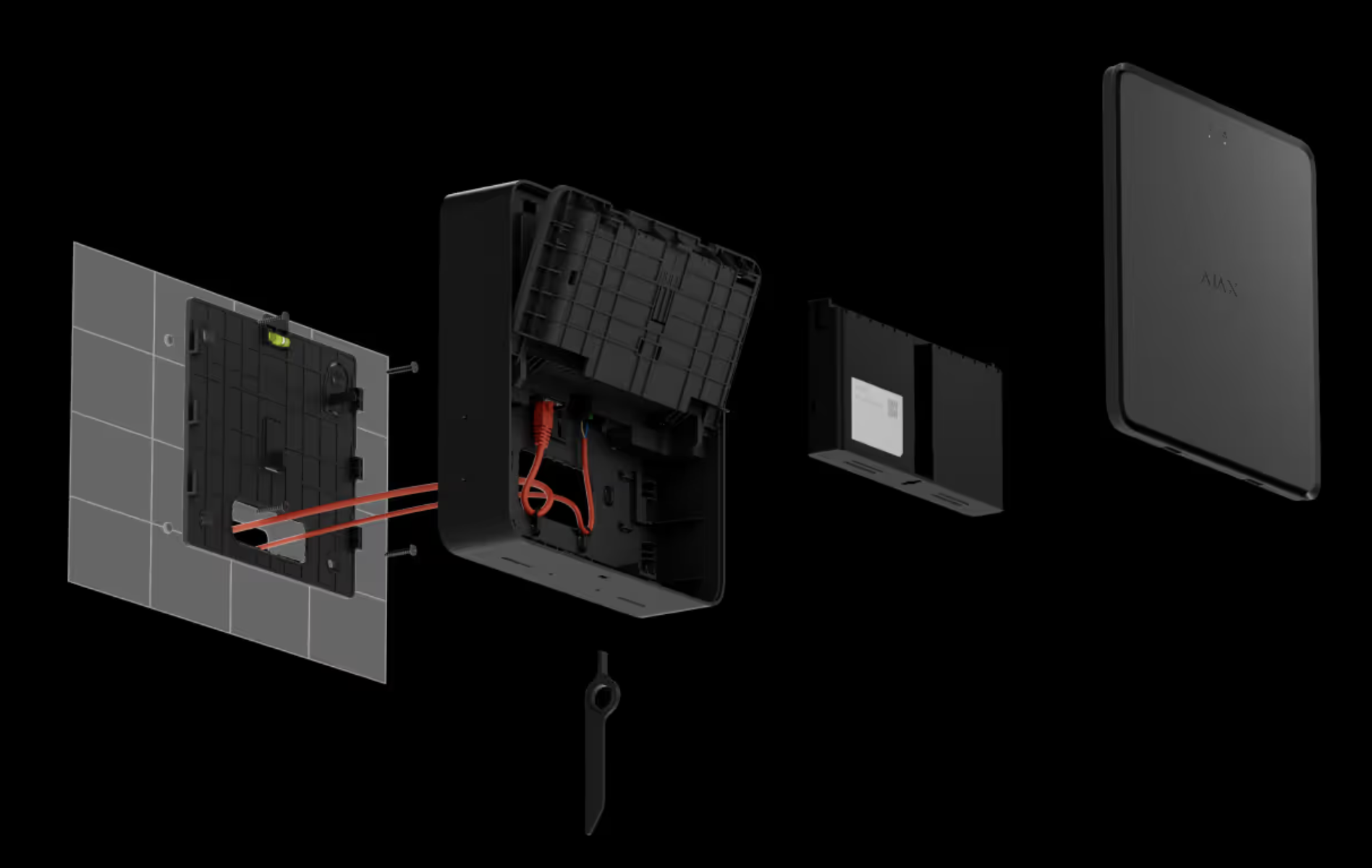

Installation

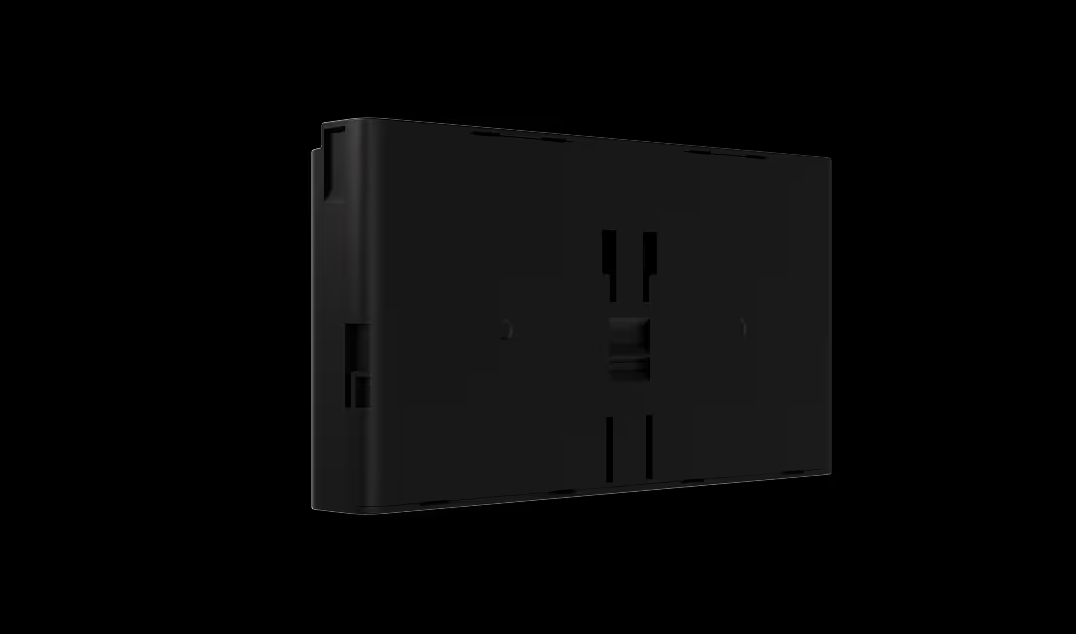

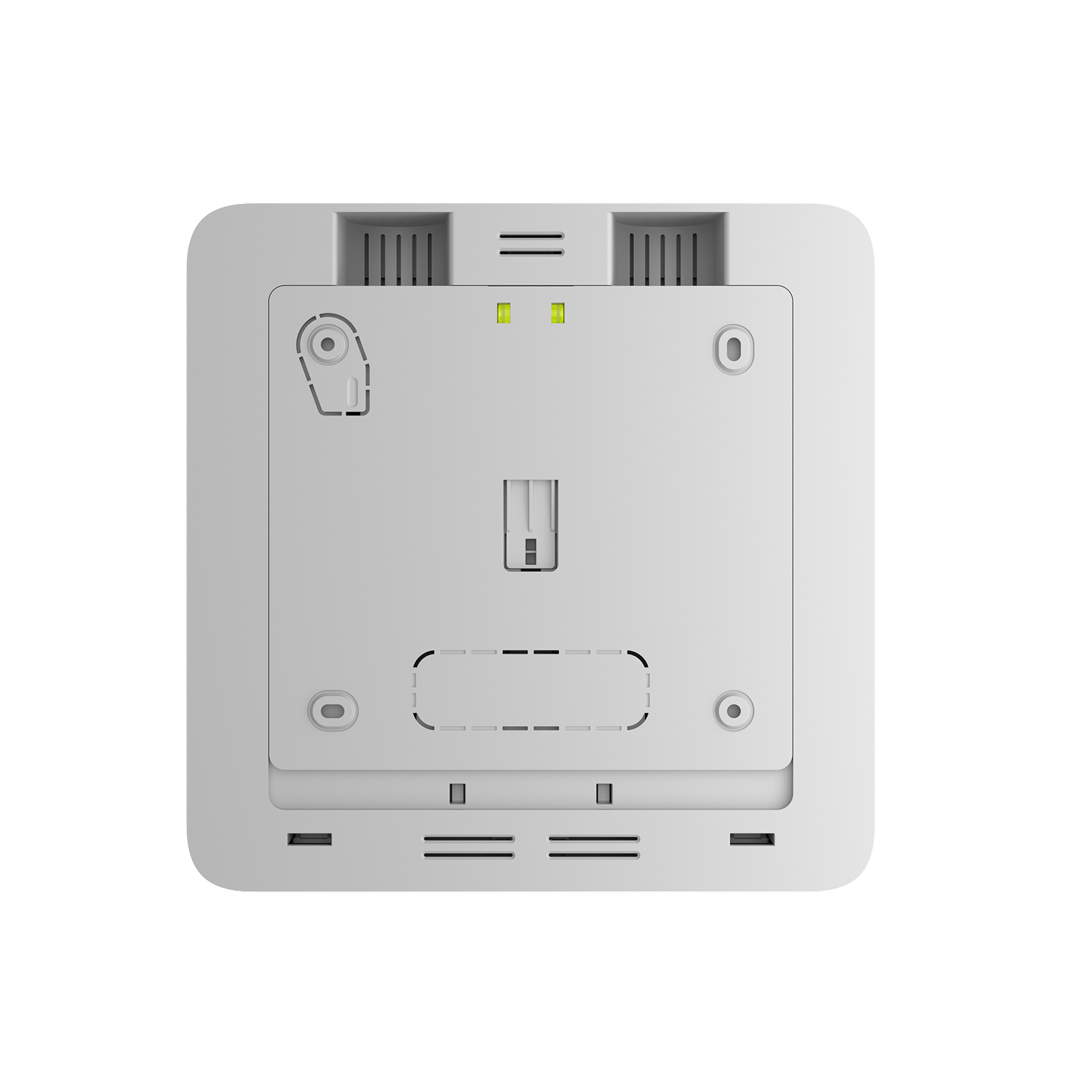

SmartBracket mounting panel with pre-marked fixing points eliminates the need to disassemble the enclosure. Every detail is designed for easy installation.

Maintenance

With EN54 Internal Battery (24h/72h), the range extender provides backup power in compliance with EN 54-4. Installing or replacing batteries takes only a few minutes.

Built for fire safety. Ready for much more.

EN54 Fire ReX Jeweller works with all EN54 Line devices, as well as wireless Ajax solutions for intrusion protection and automation. This flexibility makes it possible to deploy both standalone fire detection systems and integrated solutions that combine fire safety with intrusion protection.

Fire alarm system

	Fully compliant with EN 54
	Reliable detection of smoke and rapid temperature rise
	Audible and visual indication that meets strict regulatory requirements
	Automated control of fire protection and evacuation equipment during alarms
	System management via the CIE touch screen or Ajax apps

Fire alarm combined with intrusion protection

	Compliant with EN 54 and EN 50131 (Grade 2) standards
	Fire alarm, intrusion protection, video surveillance, and automation integrated in a single system
	Support for visual alarm verification for faster threat identification and response
	Enhanced system capabilities through automation
	Complete control of all devices via mobile and desktop Ajax apps

Visual verification of alarms

EN54 Fire ReX Jeweller supports both photo and video alarm verification via Ajax MotionCam detectors. Combined with automation scenarios, this makes it possible to create a complete visual verification system for fire and other alarms. An operator can quickly assess the situation, saving users from concerns and monitoring companies from unnecessary dispatches.

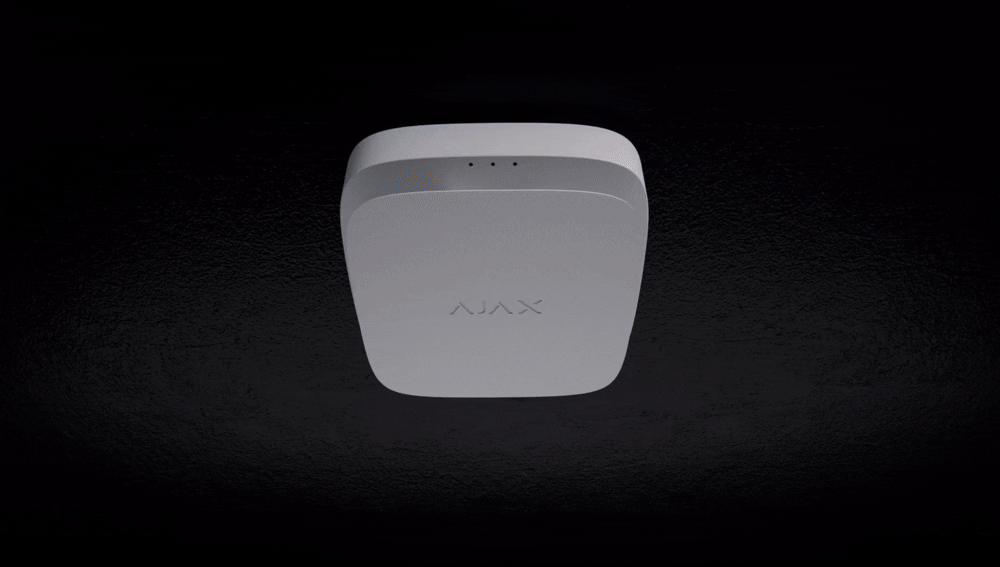

Fire alarm confirmation

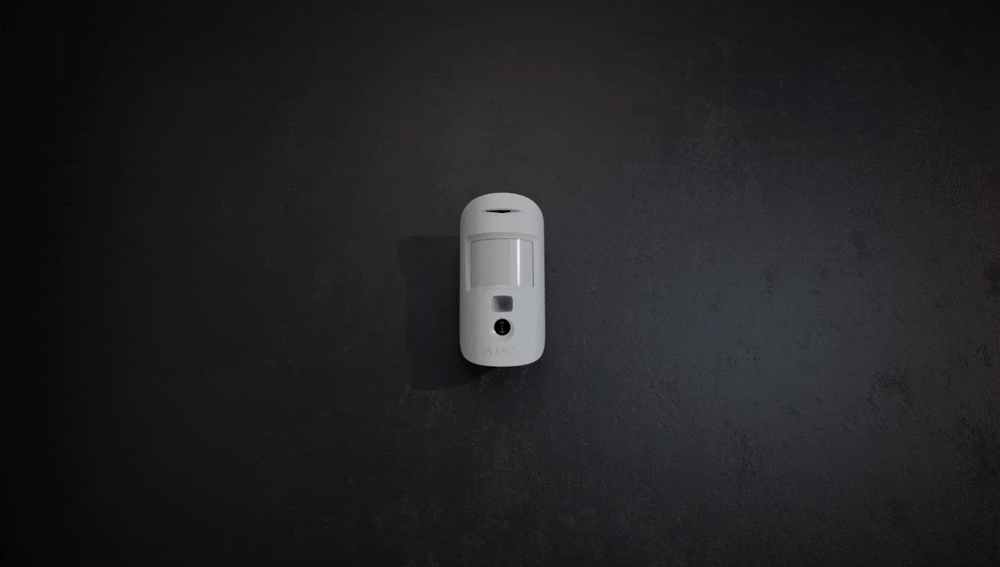

Verification of other alarms

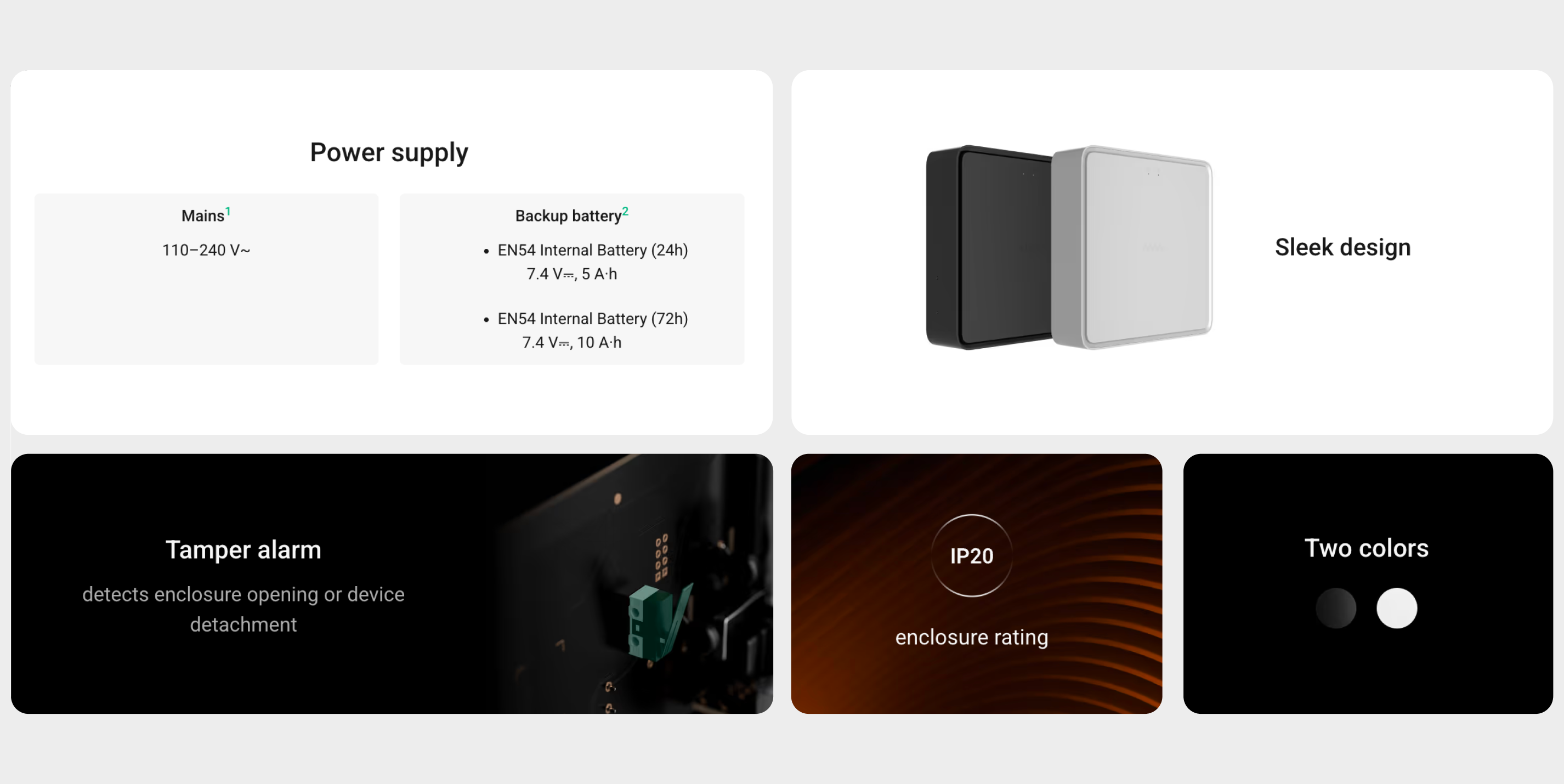

Stable performance even in a blackout

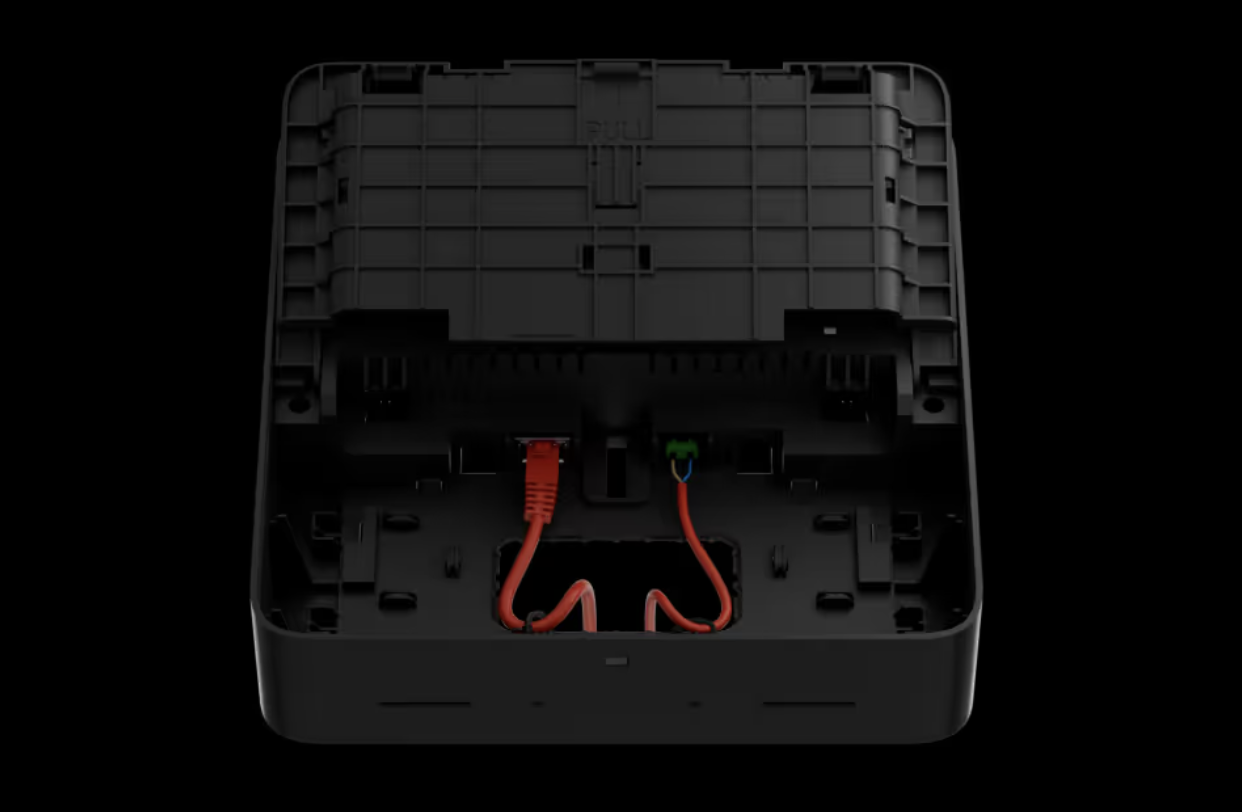

Main power supply

EN54 Fire ReX Jeweller connects directly to a 110–240 V, 50/60 Hz mains supply via dedicated power terminals. The power cable is not included, and the device must be wired directly into the electrical network.

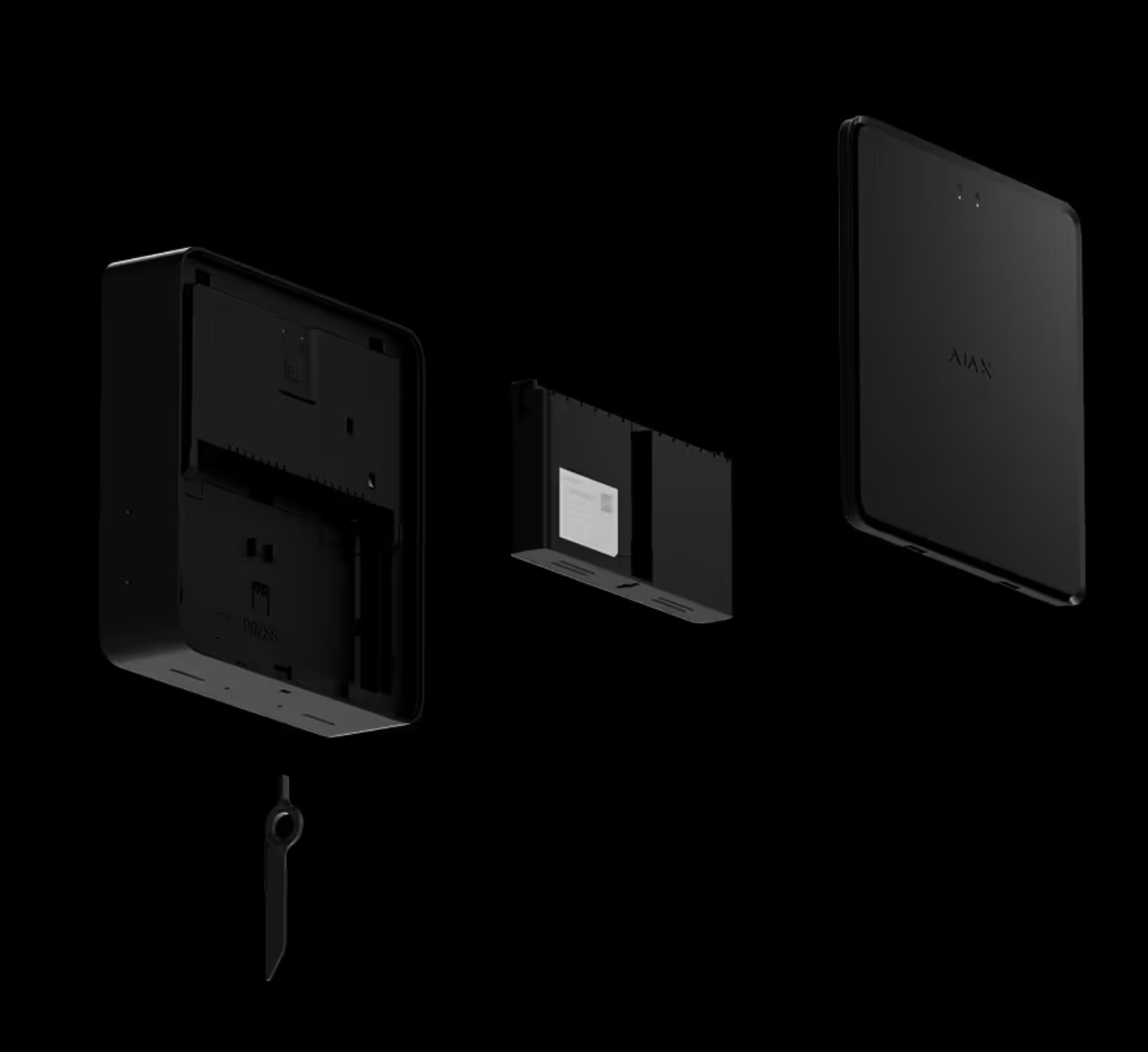

Backup battery

EN54 Fire ReX Jeweller features a compartment for installing one of the available backup batteries²:

• EN54 Internal Battery (24h)

• EN54 Internal Battery (72h)

Each battery provides up to 24 or 72 hours of autonomous operation³, respectively.

Batteries can be hot-swapped at any time without shutting down the CIE.

Immunity to lags, freezing, and viruses

EN54 Fire ReX Jeweller runs on OS Malevich, a real-time operating system developed by Ajax Systems. It is immune to viruses, resistant to cyberattacks, and extremely reliable. Action load and execute in less than a second after a smartphone tap, and automation scenarios are executed within the same rapid timeframe.

The range extender regularly receives over-the-air updates using the Wings communication protocol. Each update enhances the overall system performance and introduces new features, ensuring Ajax devices evolve and stay relevant for years.

Sabotage resistance

In case of an alarm, the system instantly notifies users via Ajax apps with critical alerts that include alarm type, device name, facility name, and room. Each detector-triggered alarm is also assigned a code, enabling monitoring companies to identify it quickly. The CIE transmits alarms to the Ajax PRO Desktop app or third-party monitoring software using proprietary protocols. Upon receiving an alarm, operators always knows exactly where help is needed.

The CIE constantly monitors the quality of wireless communication with system devices. If data packets are lost, it automatically switches to a different frequency within the band and reports the interference. Both the security company and users are notified about jamming attempts, ensuring the system stays one step ahead of sabotage.

All data stored and transmitted by the system is protected with block cipher encryption featuring a dynamic key. This makes it virtually impossible to reprogram the device, substitute, or steal the data.

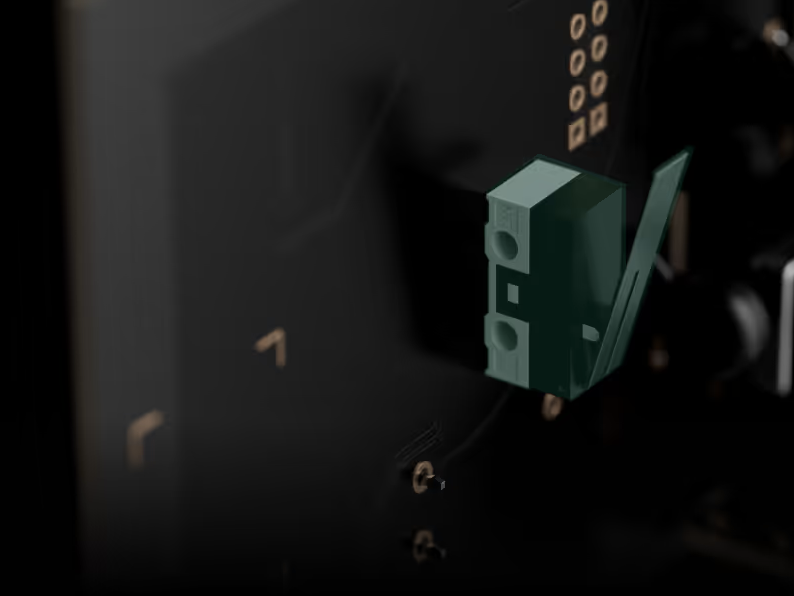

EN54 Fire ReX Jeweller enclosure features two tamper buttons that trigger an alarm if the device is detached from the surface or removed from the mounting panel. To further resist dismantling attempts, the range extender is secured with a lock at the bottom of the enclosure. The lock can only be opened with a special key tool included in the complete set.
