Technical specifications
|
Classification
| Siren with light alarms
|
Type of siren
| Wireless |

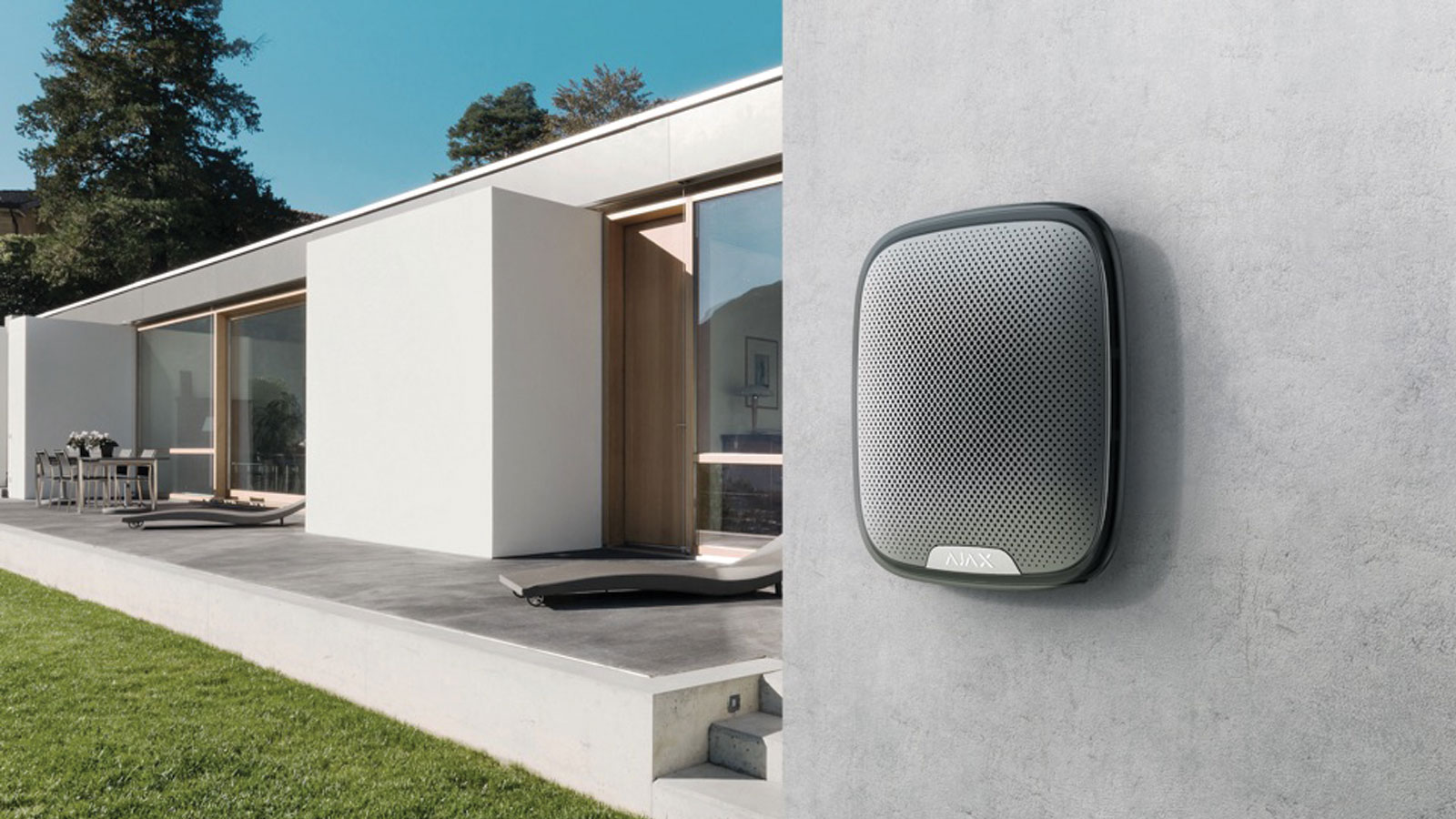

Installation method
| Indoors and outdoors |
Compatibility
|
All Ajax hubs and radio signal range extenders
|
Type of notification
| Acoustic and LED |

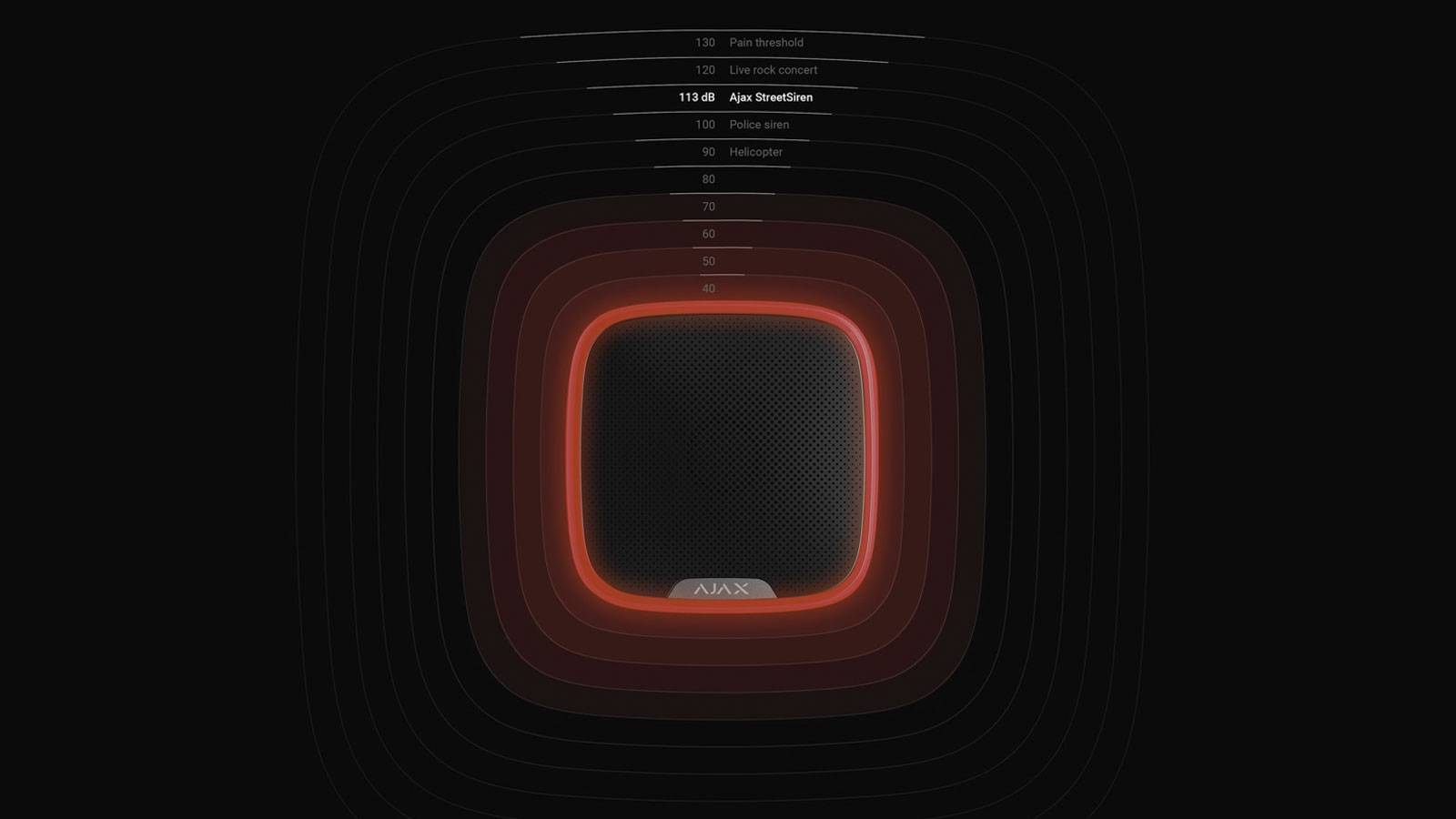

Alarm volume
| From 85 to 113 dB at a distance of 1 m
Adjusted in the Ajax app |
Alarm duration
| From 3 s to 3 min
Adjusted in the Ajax app |
Indication of arming mode
| Yes
|
Indication of entry/exit delays |
Yes With firmware version 3.50 and higher
|
Chimes
|
Yes With firmware version 3.73.1.0 and higher
|
Power supply
|
Batteries 4 × CR123A, 3 V Up to 5 years of battery life
External power supply 12 V⎓, 1.5 A
|
Jeweller communication technology |
Frequency bands |
| 921.0 – 922.0 MHz depends on the region of sales
Maximum effective radiated power (ERP) ≤ 20 mW
Radio signal modulation GFSK
Communication range up to 1,500 m in an open space
Polling interval 12–300 s Adjusted by PRO or user with system configuration rights
|
Operating temperature range
|
From -25°С to +50°С
|
Operating humidity
|
Up to 95%
|
Protection
| IP54 |
Anti-sabotage |
Protection against forgery |
| Jamming detection Tamper against enclosure opening Accelerometer against detachment
|

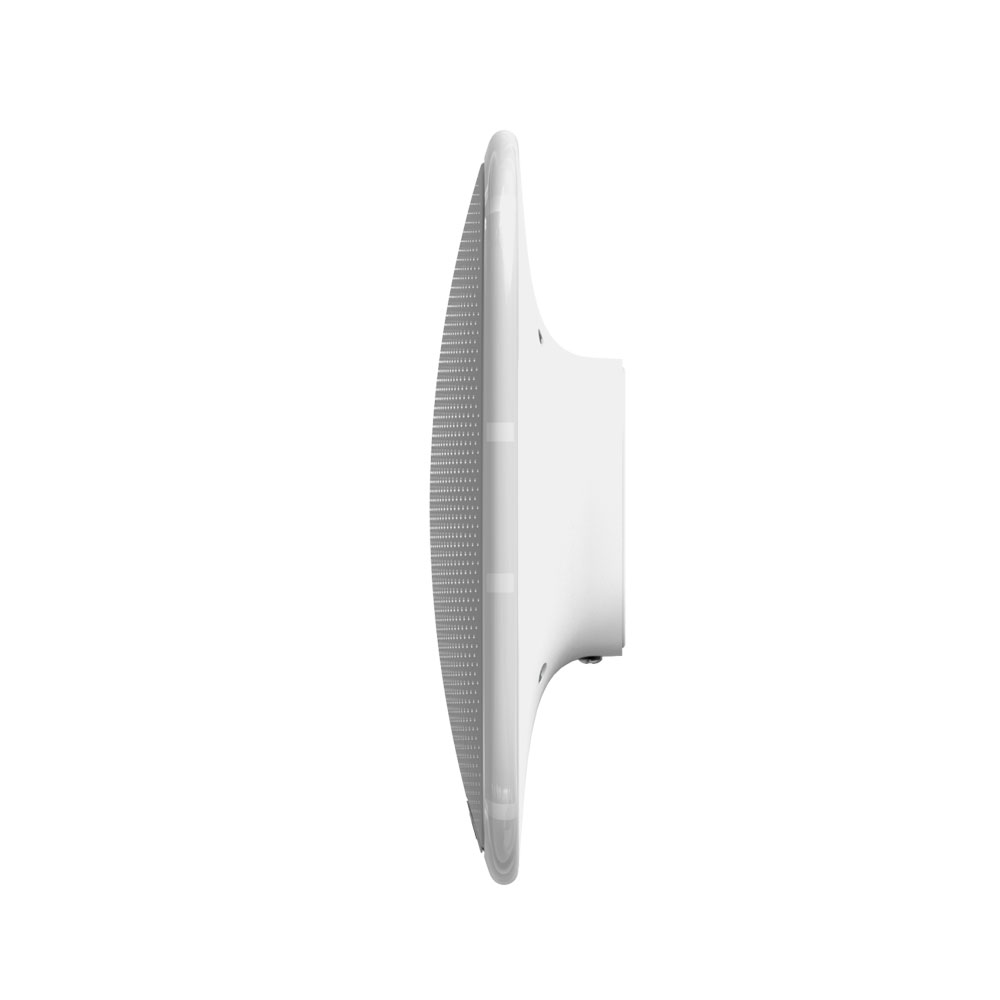

Dimensions
| 200 × 200 × 51 mm |
Weight
|
528 g
|
Warranty
| 24 months from the date of sale |
Complete set |

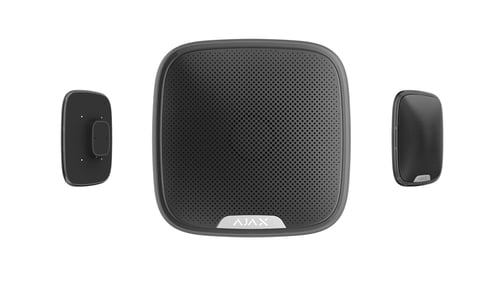

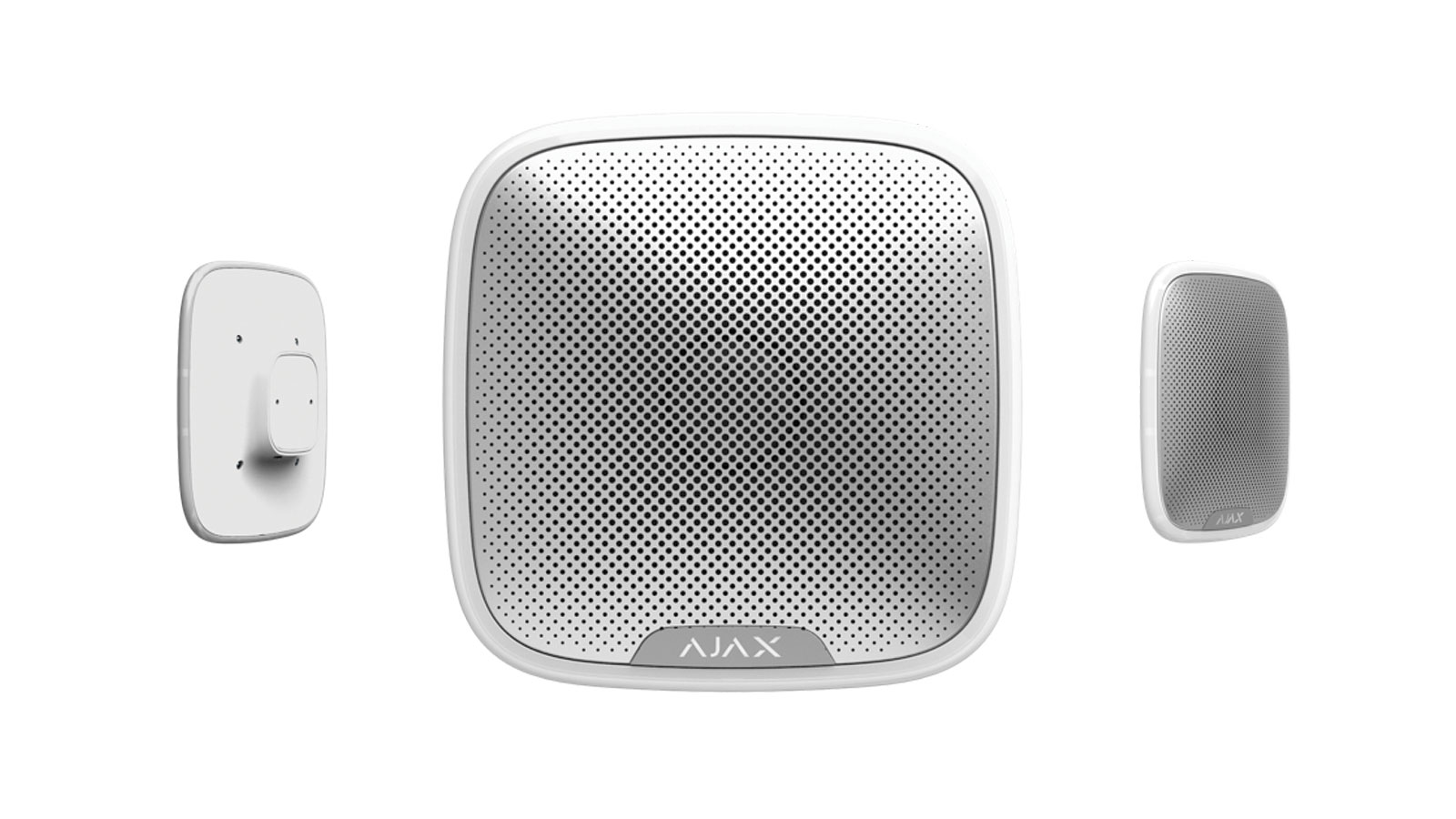

StreetSiren |

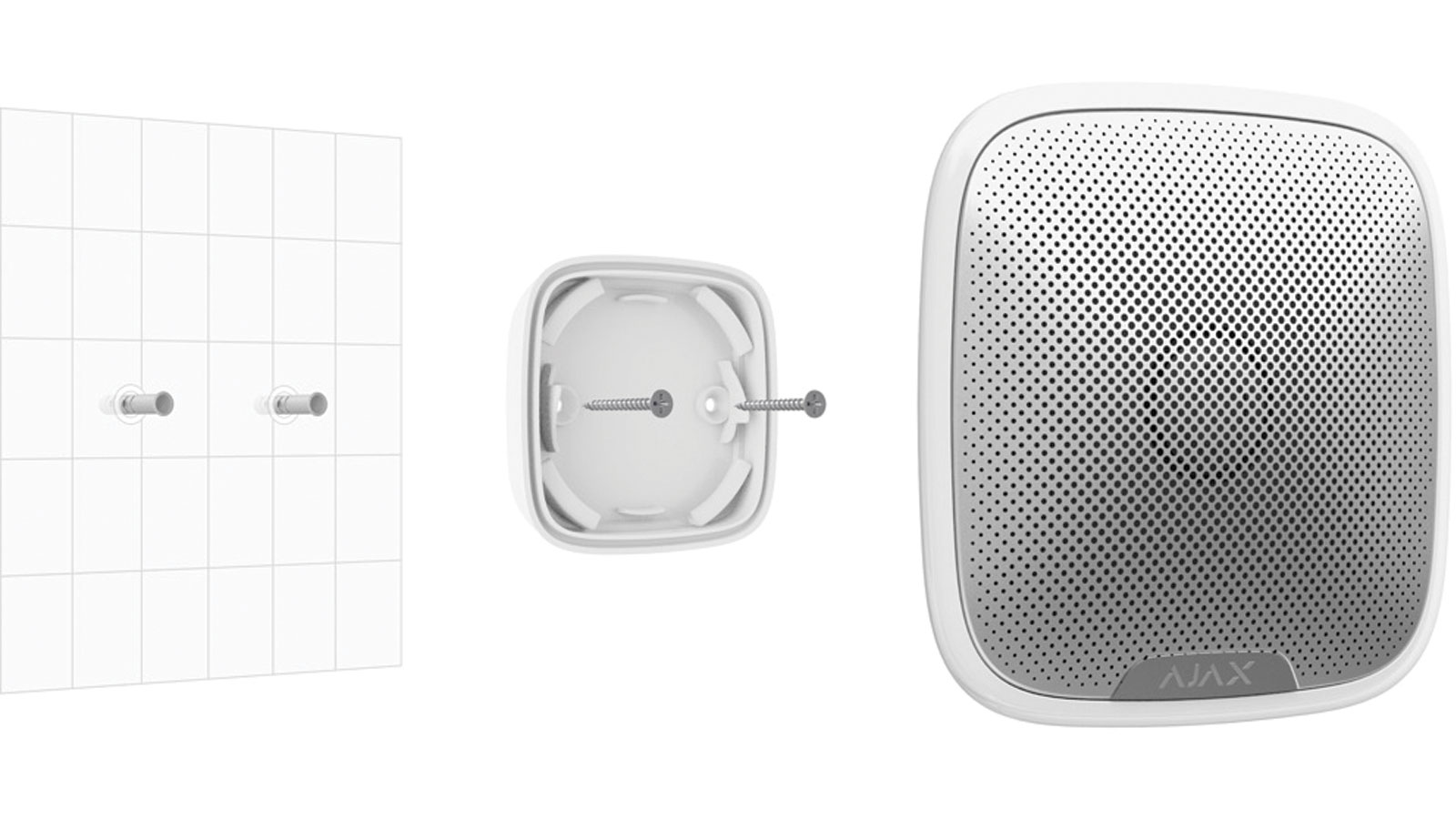

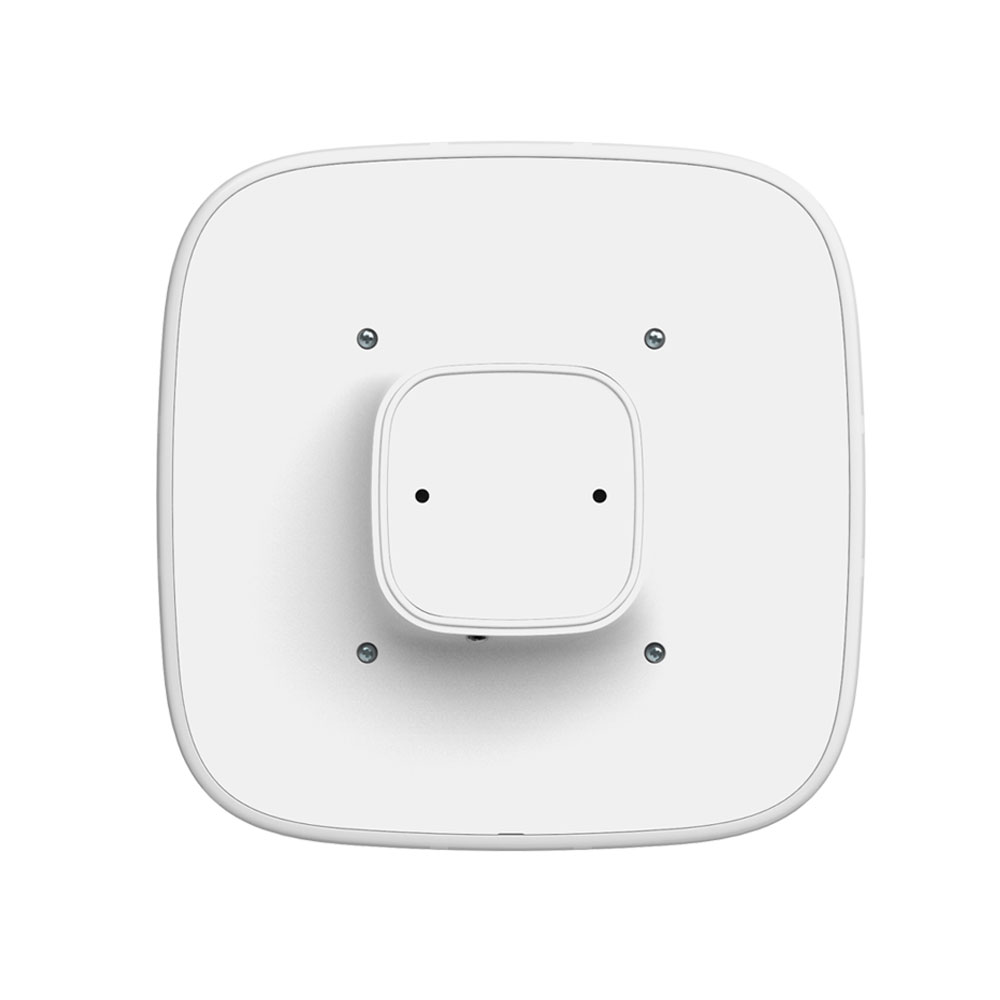

| SmartBracket mounting panel 4 × CR123A battery (pre-installed) Installation kit Quick Start Guide
|
