Tech spac |
Classification |
Electro-optical combined radio channel security detector
|
Type of detector |
Wireless
|
Installation method |
Indoors
|
Compatibility |
|
Sensing element
|
PIR sensor, microwave sensor (24 GHz)
|
Alarm signal delivery time |
0.15 s
|
Motion detection distance |
Up to 12 m
|
Detection angles |
Horizontal — 88.5°
Vertical — 80°
|
Time for motion detection |
From 0.3 to 2 m/s
|
Sensitivity
|
Adjustable, 3 levels
|
Recommended installation height |
2.4 m
|
Pet immunity |
Weight — up to 20 kg
Height — up to 50 cm
|
Power supply |
Battery: CR123A battery, 3 V
|
Battery life |
Up to 5 years
|
Jeweller radio technology |
Communication range with central unit — up to 1,200 m in an open space
Two-way communication between devices
Radio frequency bands:
921.0 – 922.0 MHz
(depends on the region of sale)
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Detector polling period — 12−300 s
|
Temperature sensor |
Available
|
Operating temperature range |
From −10°С to +40°С
|
Anti-sabotage |
Protection against fraud
Jamming detection
Tamper-resistant
|
Remote setting and testing |
+
|
Dimensions |
110 × 65 × 50 mm
|
Weight |
96 g
|
Warranty
|
Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.
|
Complete set |

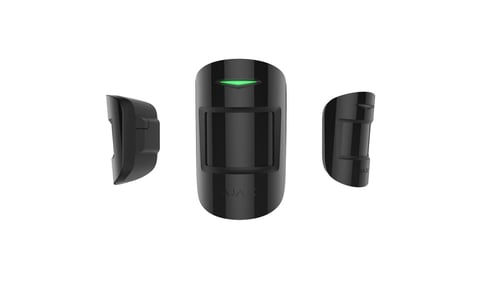

MotionProtect Plus motion detector

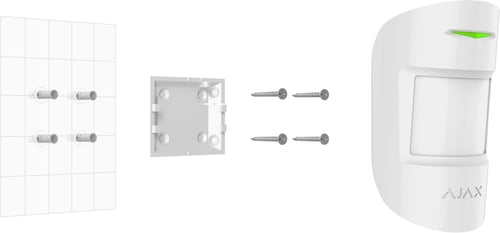

SmartBracket mounting panel
CR123A battery (pre-installed)
Installation set
User’s guide
|
|
