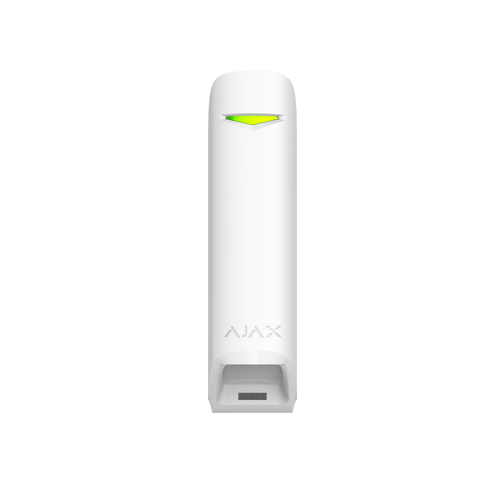

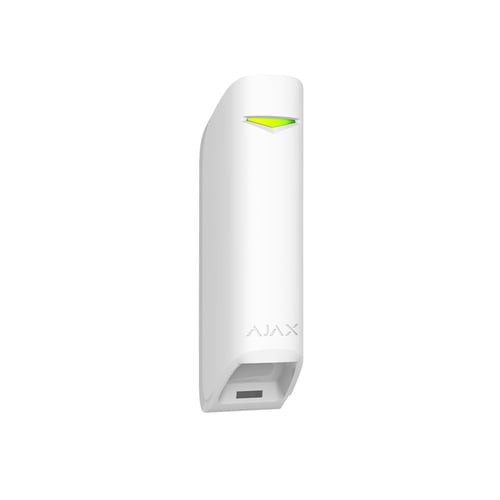

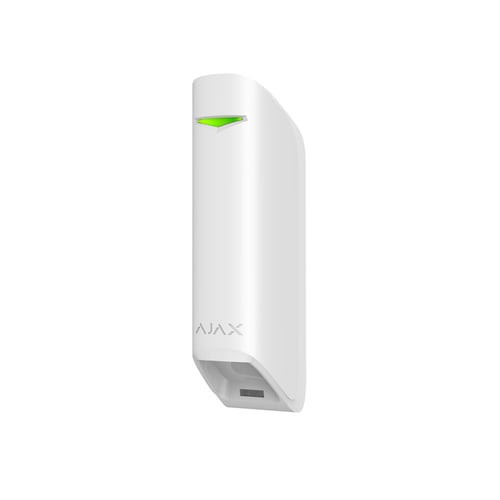

AJAX MotionProtect Curtain (White)
MotionProtect Curtain

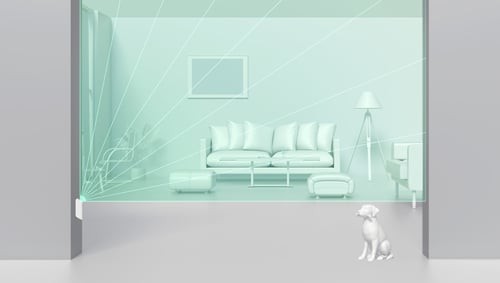

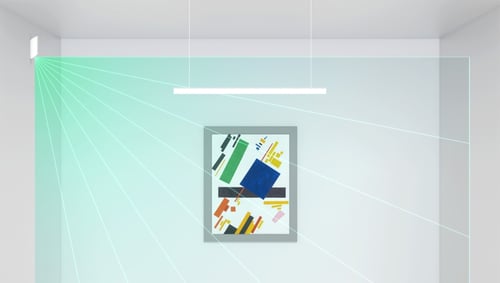

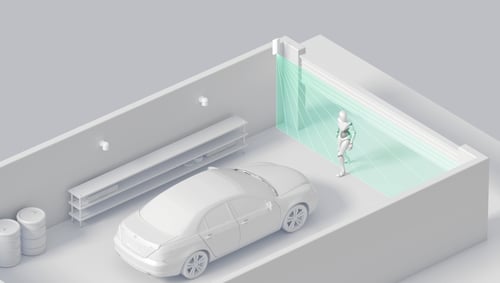

อุปกรณ์ตรวจจับการเคลื่อนไหวในอาคารแบบลำแสงแคบ เพื่อใช้ป้องกันบริเวณแนวผนัง เช่น หน้าต่าง ประตูและของมีค่าต่าง ๆ
ตรวจจับการเคลื่อนไหวได้ไกลถึง 15 เมตร ทำงานด้วยแบตเตอรี่ได้นานถึง 3 ปี ส่งสัญญาณแจ้งเตือนได้ไกลจาก Hub ถึง 1,700 เมตร
ราคา
3,520.00 บาท
สอบถามข้อมูลเพิ่มเติม
Classification | Radio-interlinked photoelectric security detector |
| Type of detector | Wireless |
Motion detection distance | Adjustable (from 6 to 15 meters) |
| Installation method | Indoors only |
| Compatibility | Operates with all Ajax hubs and range extenders |
Sensing element | Two PIR sensors |
False alarm reduction | Available, Correlation Signal Processing |
| Alarm signal delivery time | 0.15 seconds |
| Detection angles | Horizontally — 6° Vertically — 90° |
| Time for motion detection | From 0.3 to 2 m/s |
| Sensitivity | Adjustable, 3 levels |
| Recommended installation height | 2.4 meters |
| Power supply | Battery: CR123A, 3 V |
| Battery life | Up to 3 years |
| Jeweller radio technology | Communication range with detectors — up to 1,700 m in an open space Two-way communication between devices Radio frequency bands: 921.0 – 922.0 MHz (depends on the region of sale) Self-adjusting RF output power — up to 20 mW Block encryption based on AES algorithm Detector polling period — 12−300 s Frequency hopping |
| Temperature sensor | Available |
| Operating temperature range | From −10°С to +40°С |
| Operating humidity | Up to 95% |
| Anti-sabotage | Fraud protection Jamming notification Tamper-resistant |
| Remote configuration and testing | * |
| Protection class | IP54 |
| Dimensions | 134 × 44 × 34 mm |
| Weight | 118 g |
| Warranty | Replacement and repair for a period of 24 months from the date of sale. The warranty does not cover batteries. |

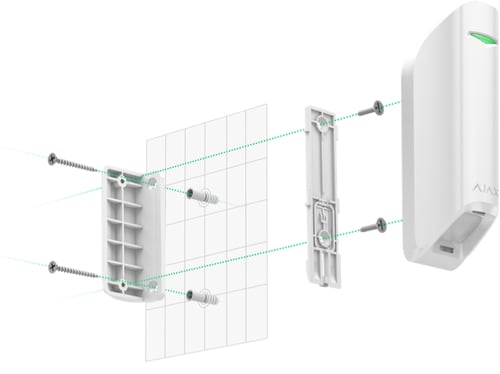

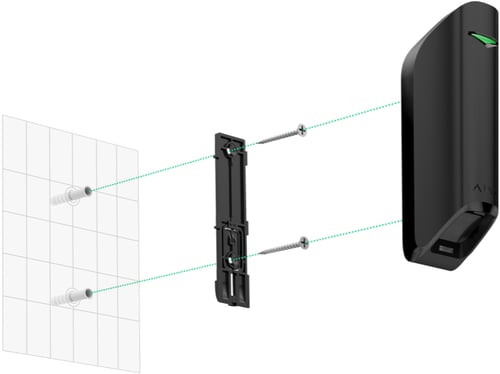

| Complete Set | MotionProtect Curtain motion detector SmartBracket mounting panel CR123A batteries (pre-installed) Bracket Installation kit User’s guide |
Compliance with the security alarm standards | EN 50131-1:2006 / A1:2009 / A2:2017 EN 50131-2-2:2017 EN 50131-6:2017 EN 50131-5-3:2017 |
Security Grade (SG) | 2 |
Radio Equipment Directive (RED) | EN 300 220-1 V3.1.1 EN 300 220-2 V3.2.1 |
Restriction of Hazardous Substances Directive (RoHS) | EN IEC 63000:2018 |
Electromagnetic Compatibility Directive (EMC) | EN 301 489-1 V2.2.3 EN 301 489-3 V2.1.1 |
Low Voltage Directive (LVD) | EN 62479:2010 EN 62368-1:2014+A11:2017 |
Environmental class according to EN 50131 | IV |
